fitting Passat switches to Mk5 golf

[182_blue]

I just thought i would post a little guide of how to fit the Passat parts with extra chrome bits , it may also help those who wish to fix faulty parts too, i bought the set from eBay and used the panel tools that i have had a while, if you require any help just ask (ps i accept no responsibility if you damage anything whilst dismantling your own car)

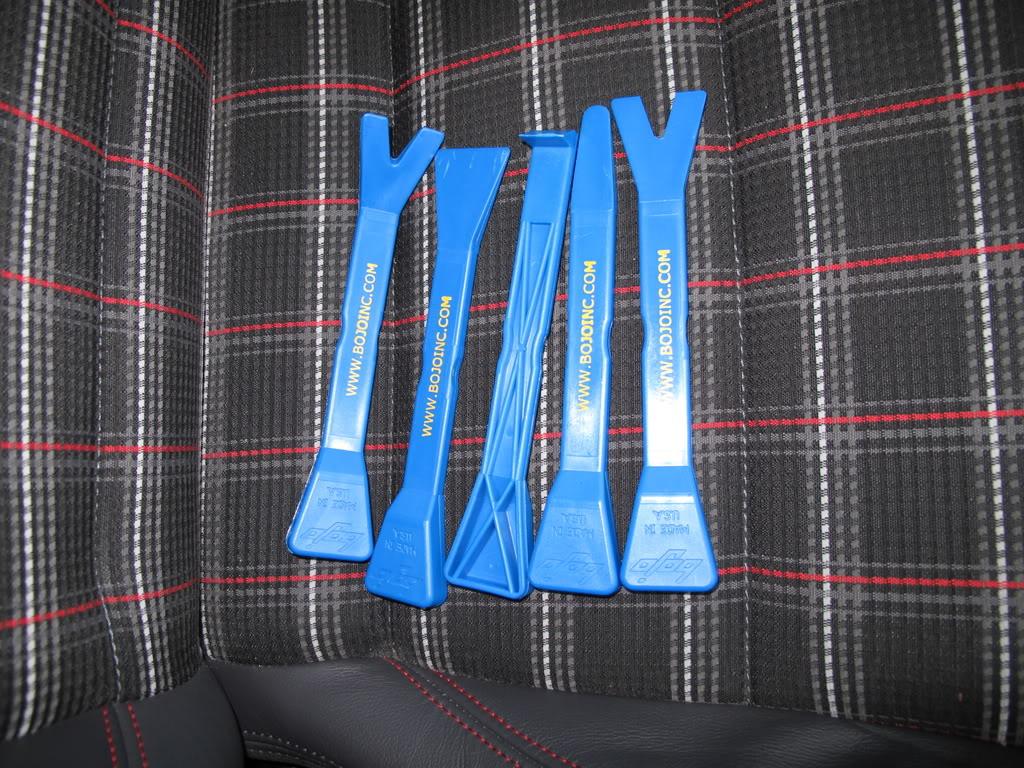

The tools i use

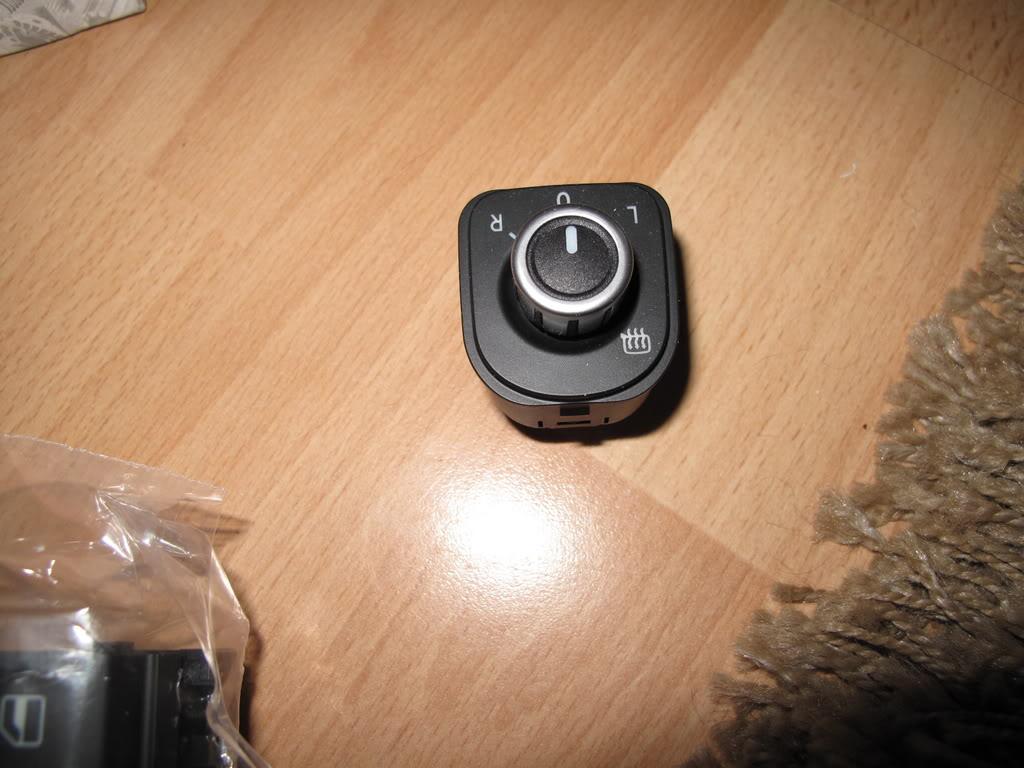

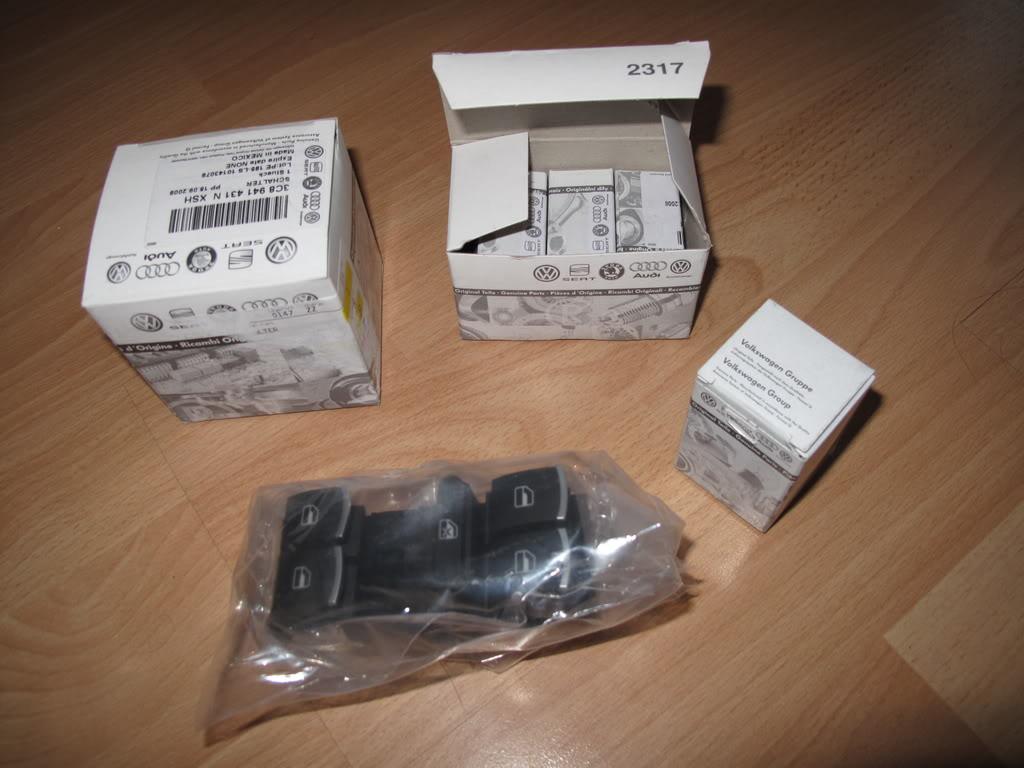

The parts

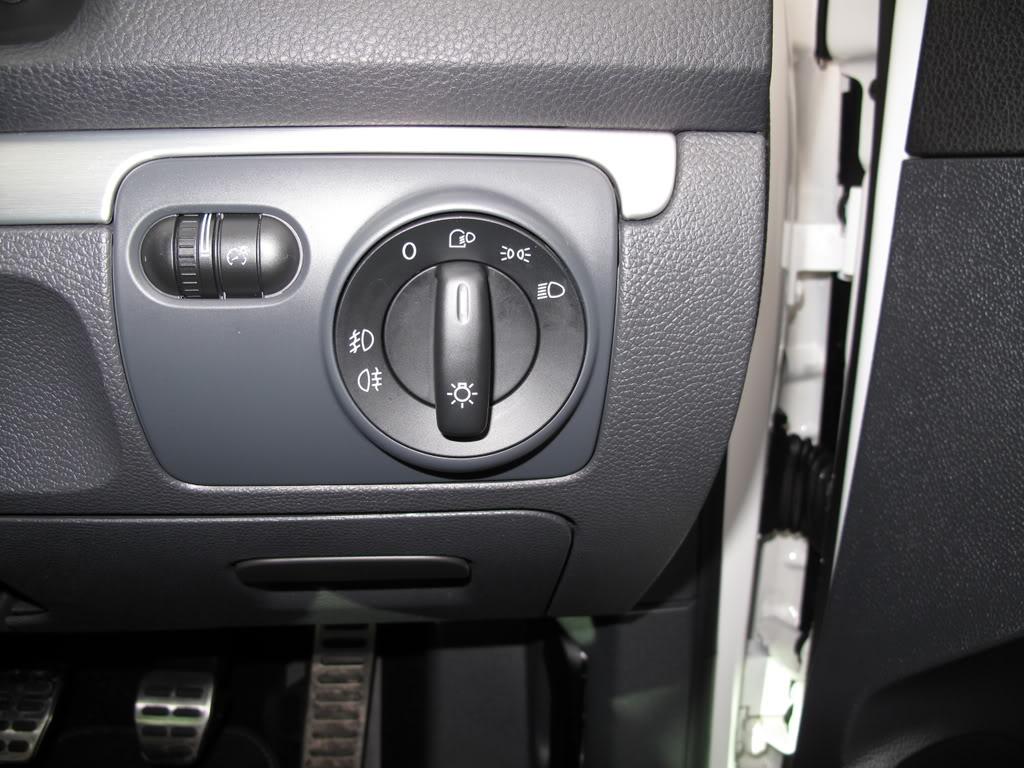

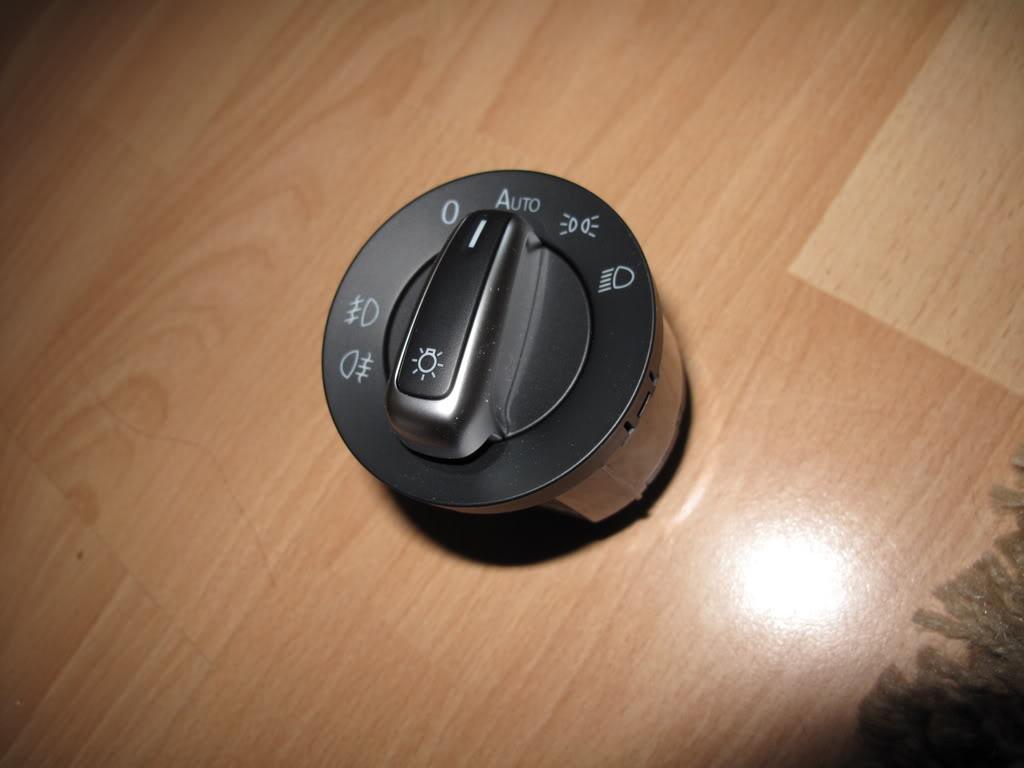

Light switch,

use this guide (as posted by Very Cherry)




ââ,¬â€œ   Switch off ignition and all electrical consumers.
ââ,¬â€œ   Turn rotary grip of light switch to position ââ,¬Å"0ââ,¬Â.

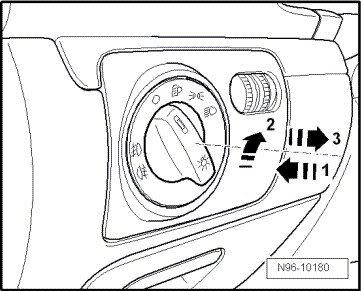

ââ,¬â€œ   Push in rotary grip of light switch -1- and turn it clockwise slightly -2-.

ââ,¬â€œ   Hold grip in this position and pull light switch out of dash panel using grip -3-.

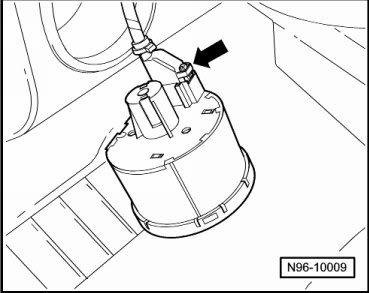

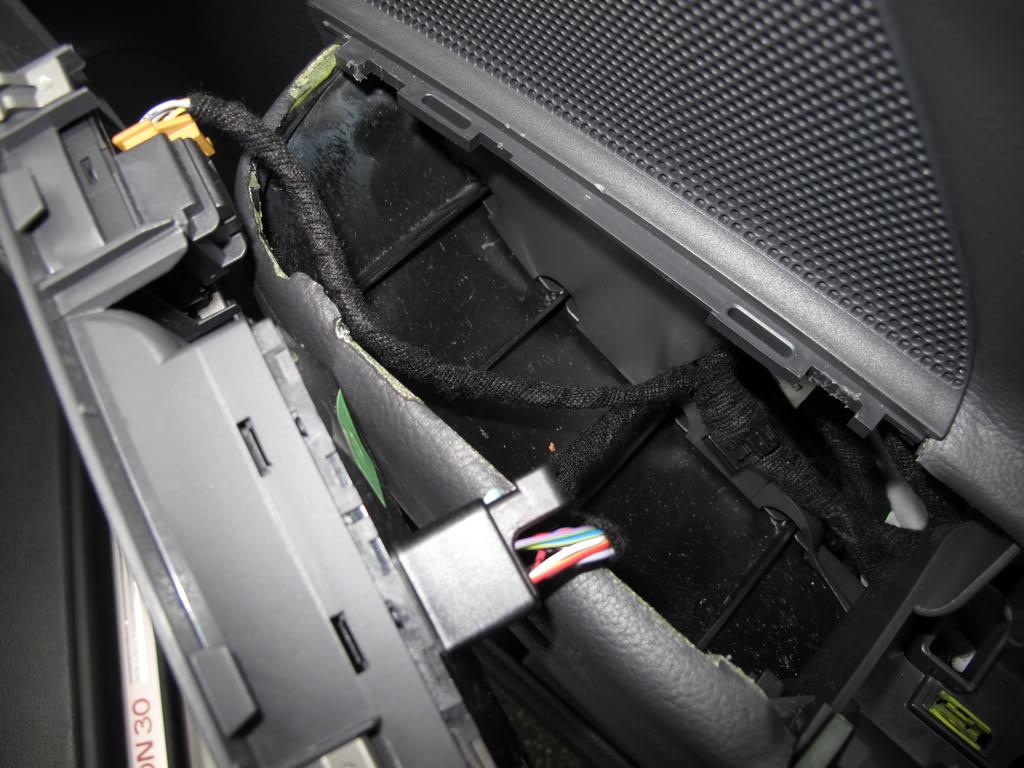

Disconnect connector -arrow-



Installing

ââ,¬â€œ   Fit connector to light switch. (as above)

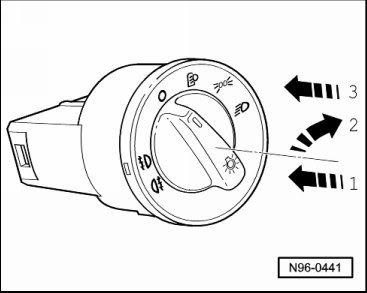

ââ,¬â€œ   Hold light switch and press rotary part of light switch firmly inwards -1- and turn slightly to right -2-.
ââ,¬â€œ   Hold grip in this position and insert light switch in dash panel -3-.
ââ,¬â€œ   Turn grip of light switch to position ââ,¬Å"0ââ,¬Â, release and engage switch.











simple really, just hope it isnt locked in like mine was, then simply remove the plug and put new one in and slide it into place

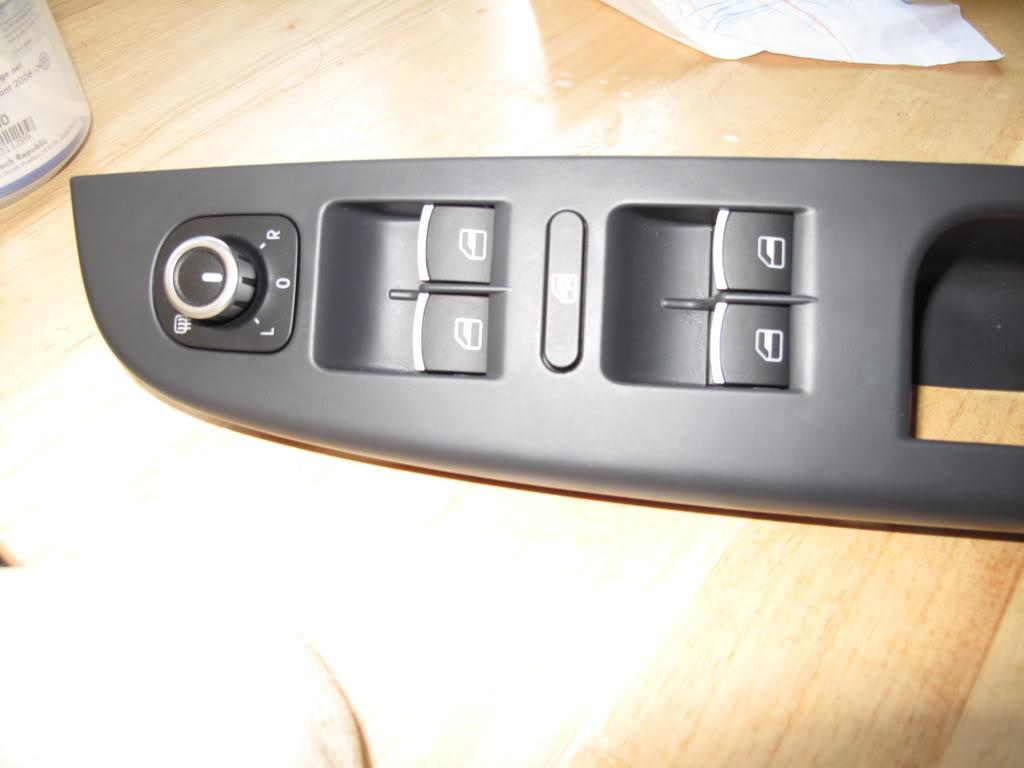

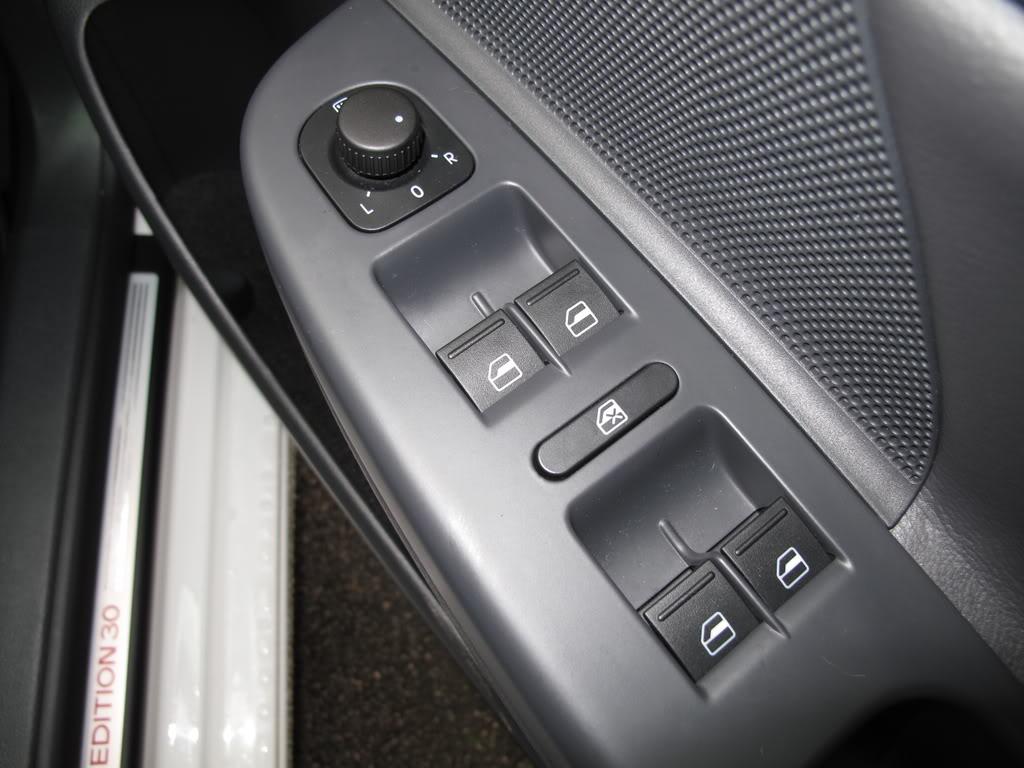

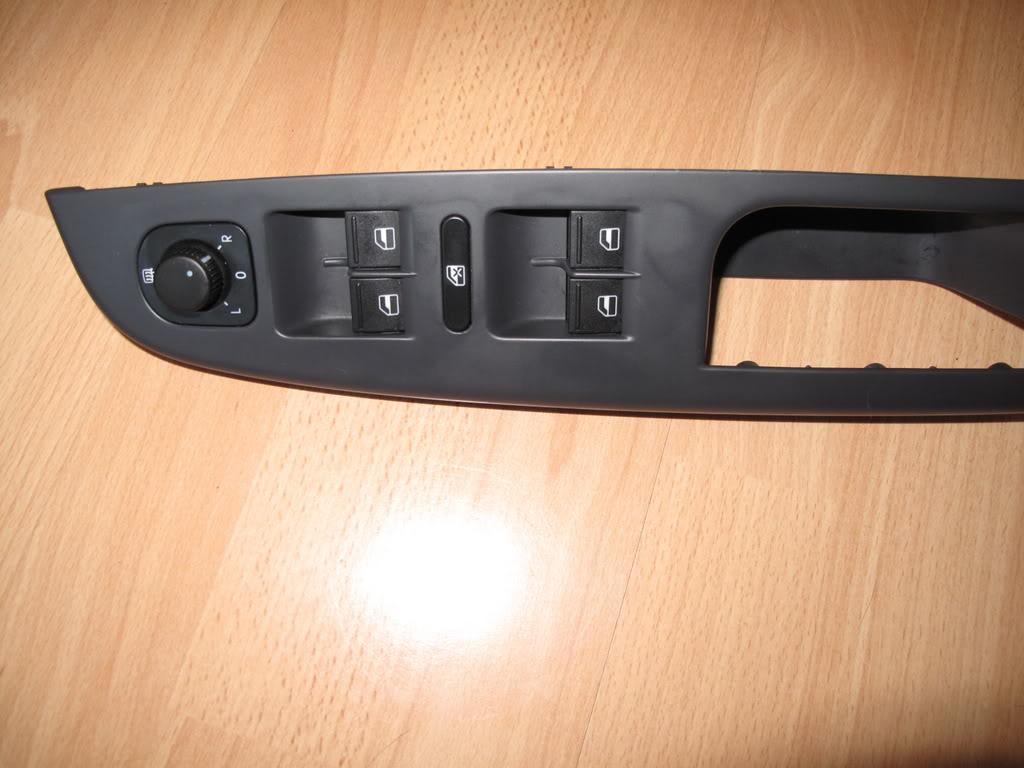

Drivers handle

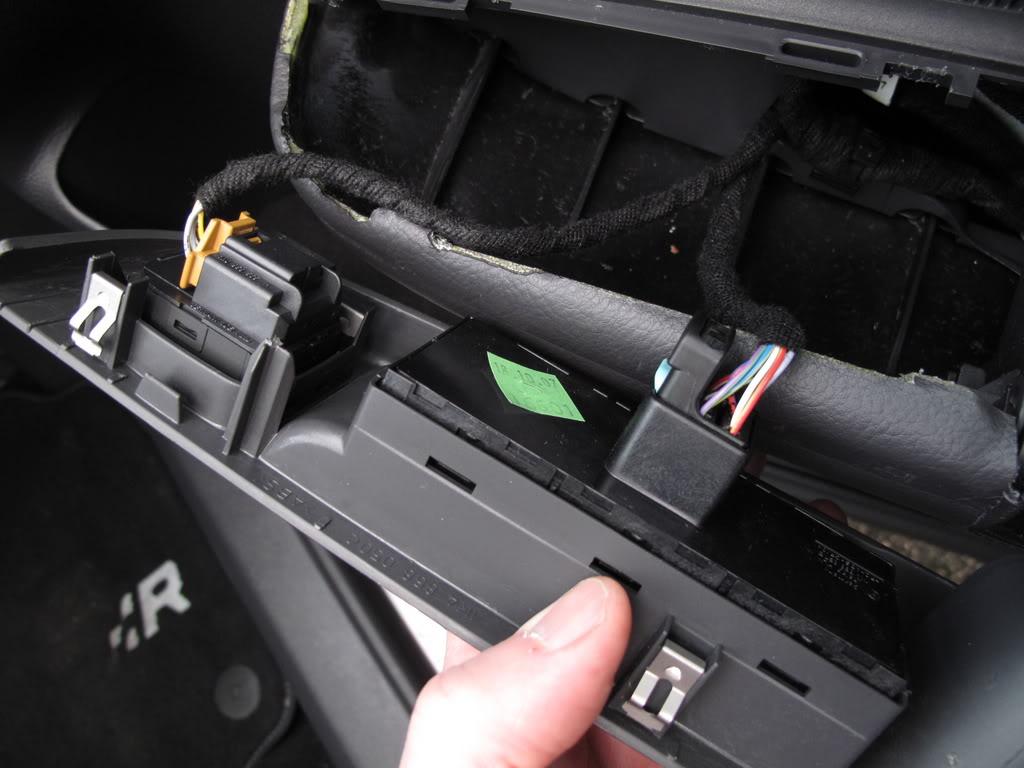

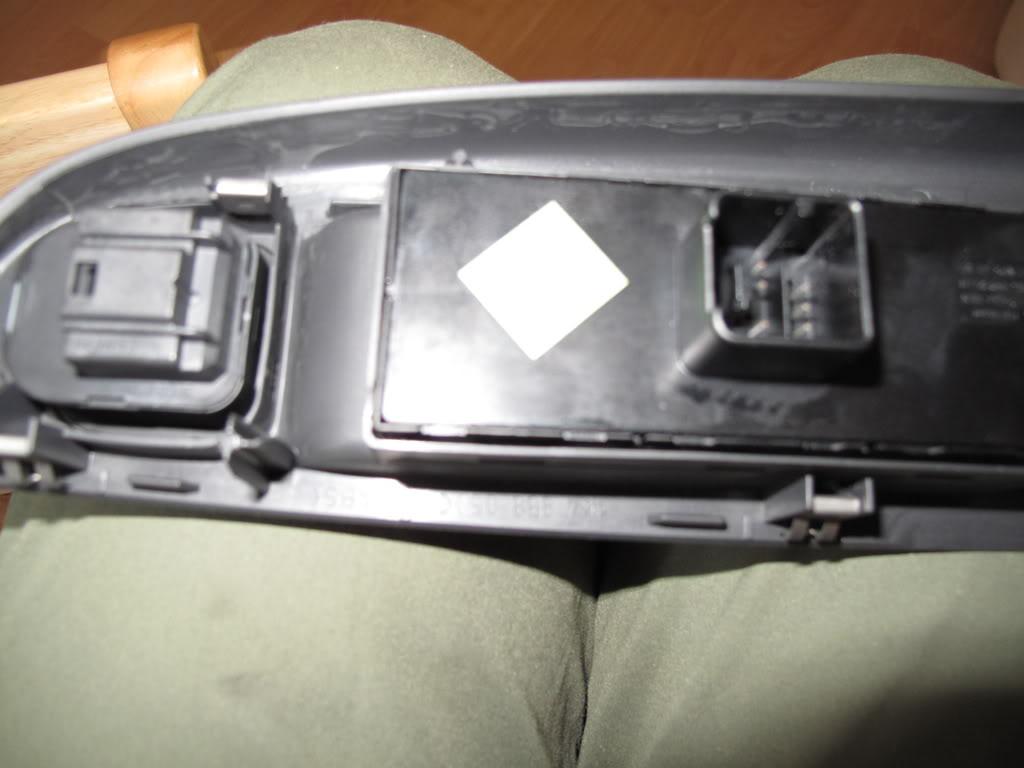

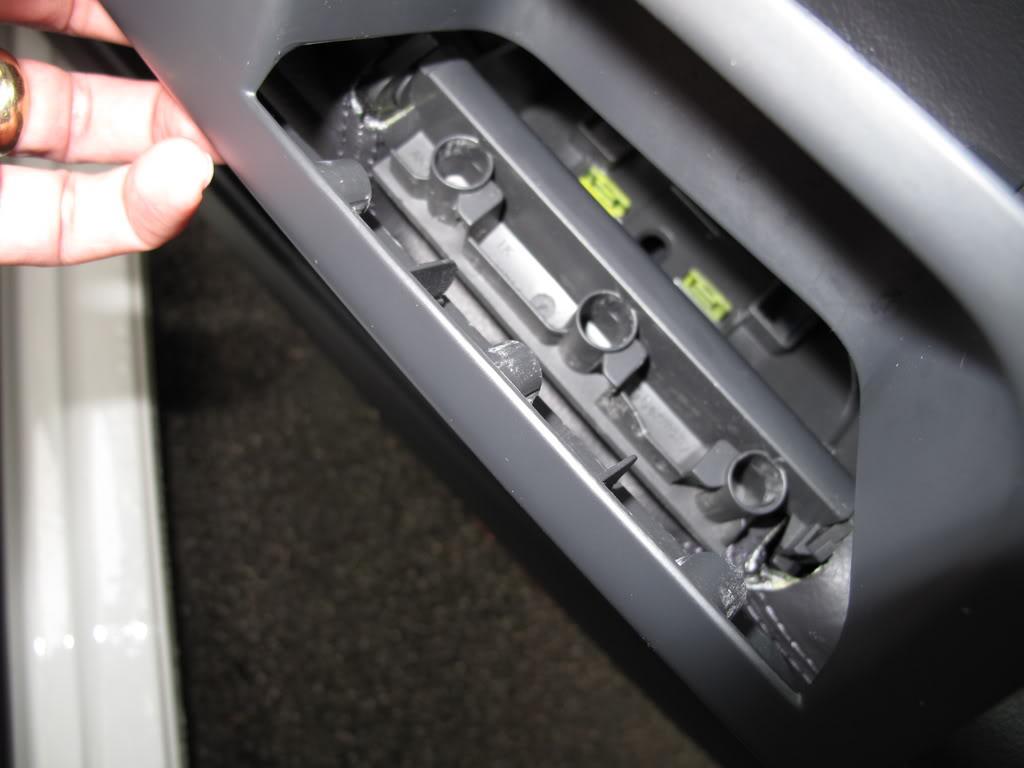

I pulled it from the front, you will see the two clips on the right hand side, when these are free you will then need to free the two metal clips at the bottom of the handle near the back, these are a little harder to remove but a little pressure and they come out, dont pull to hard as the handle is held in by 3 plastic pop in bits, again gentle pressure and they soon come out, then its simply removing the old switches by pushing a flat blade under the clips and the old electric unit pops out, pull out electrics and instal new unit, then re fit electrics and pop handle back on

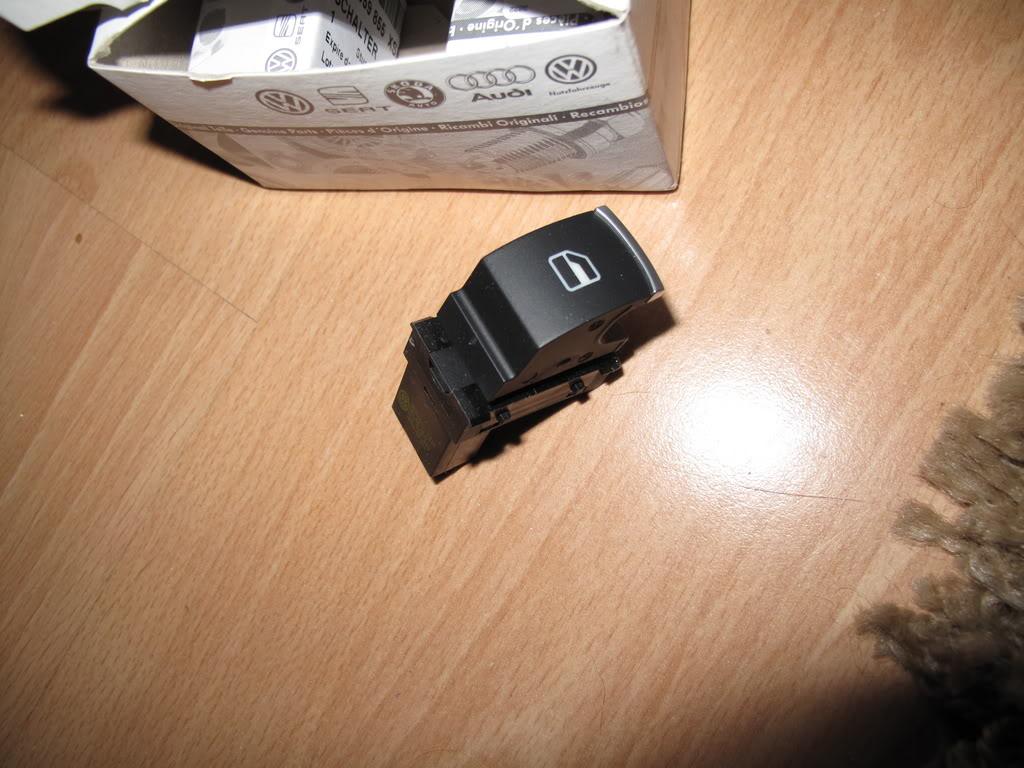

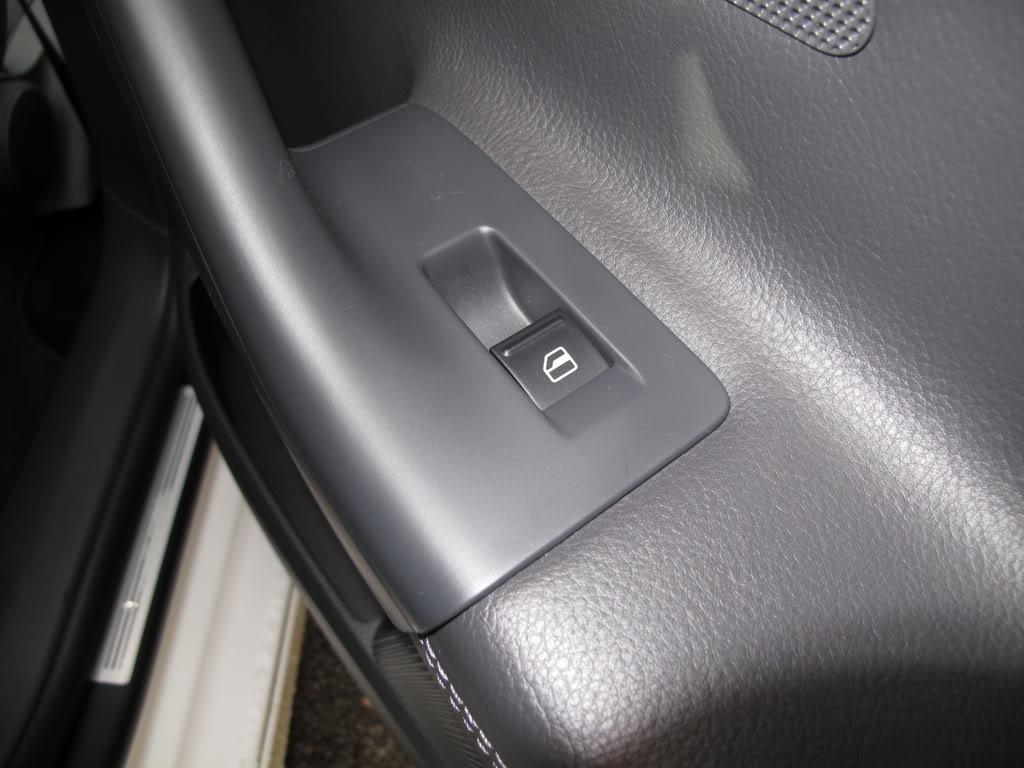

passengers handle

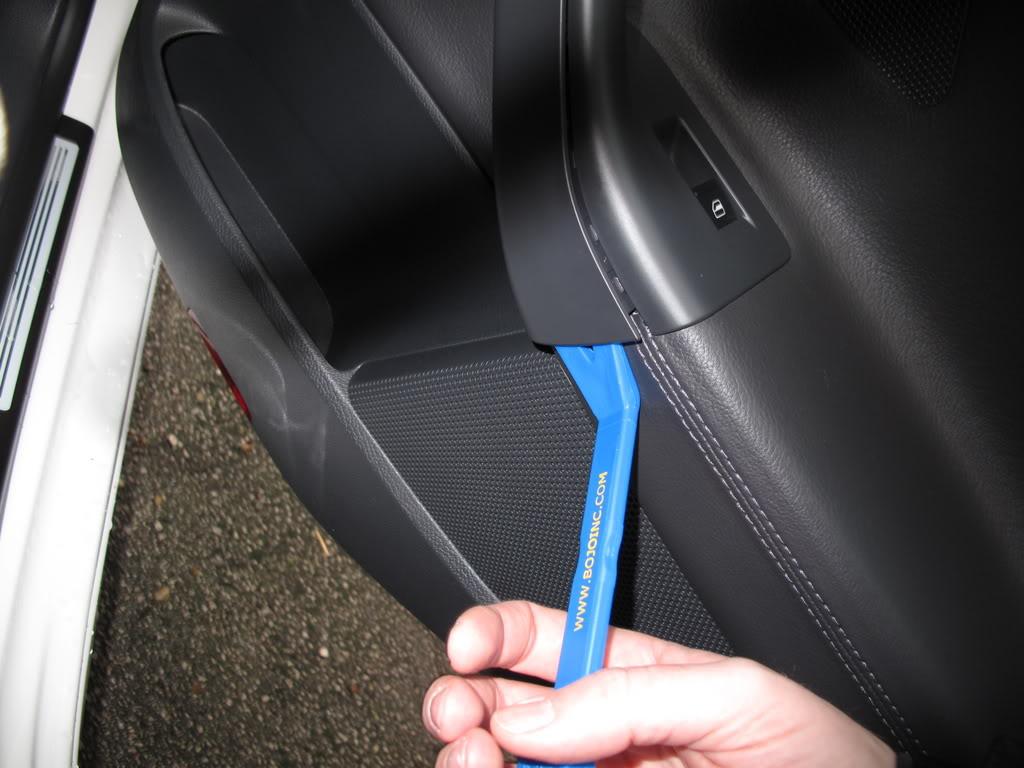

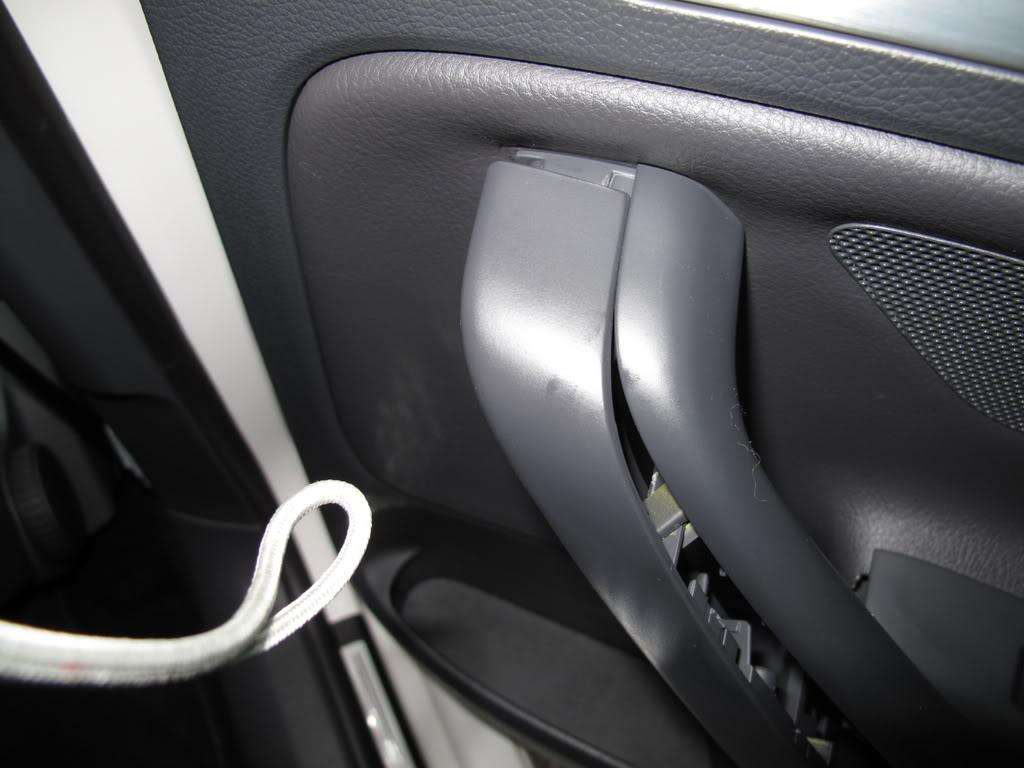

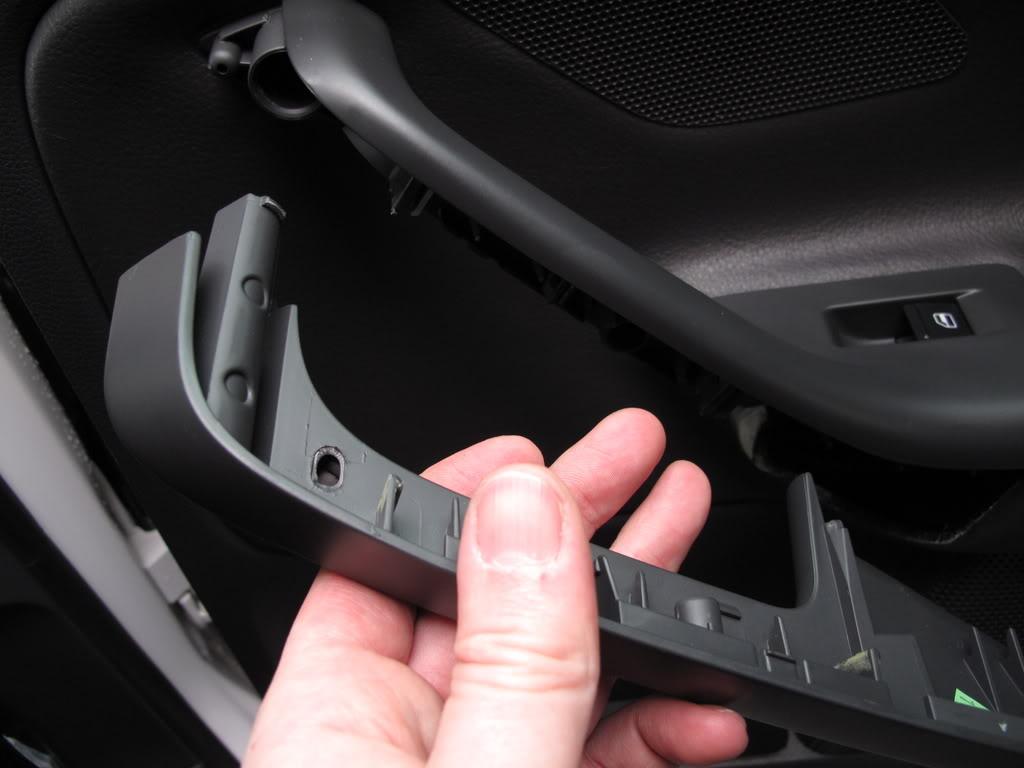

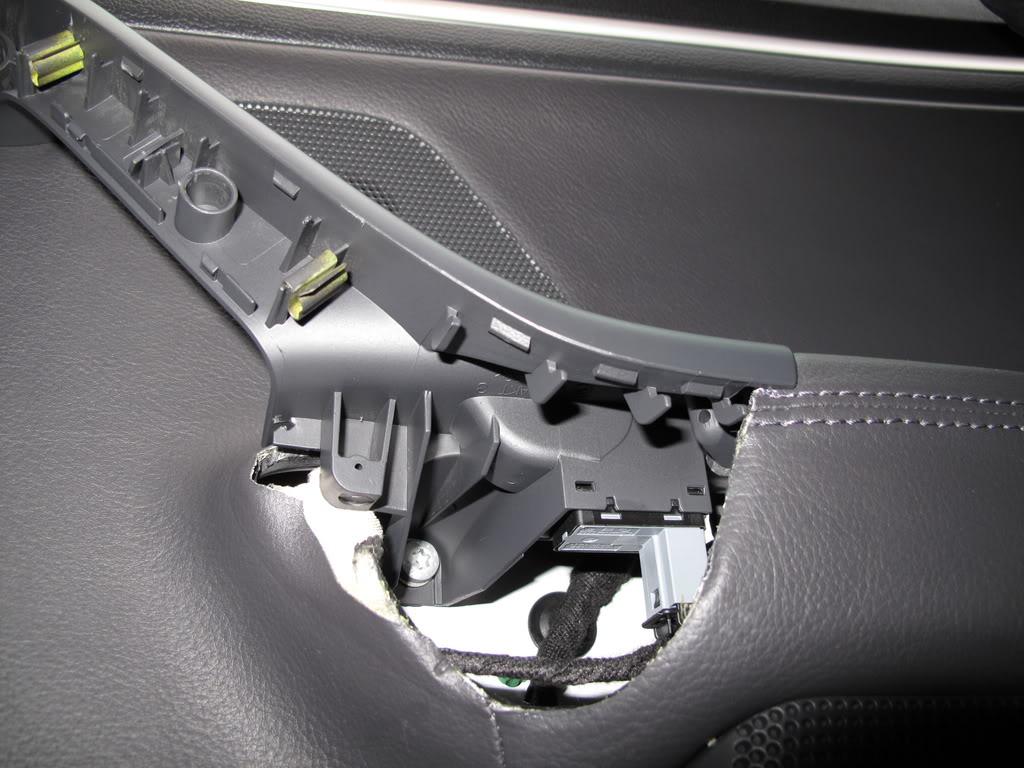

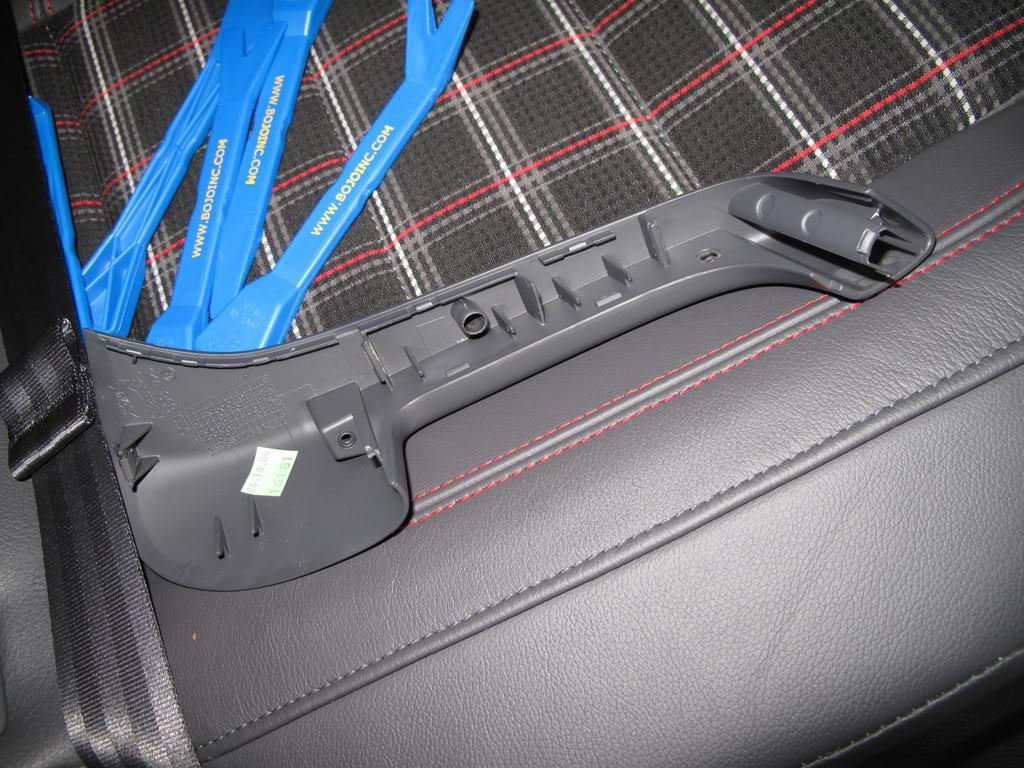

For these you remove the bottom part of the handle, start at the back of the handle (as in picture), and pop the handle out, the handle is then held in via two metal clips and a plastic pop clip right at the top, the handle pulls directly out from the door, do not pull up or down etc, just pull it directly outwards , then you can see the switch, i again removed the switch by prying it out with a flat device, when out pop off electrics put in new unit, put electrics back in and renistall the unit, handle pops back on and jobs done (well, after you do the other two handles)

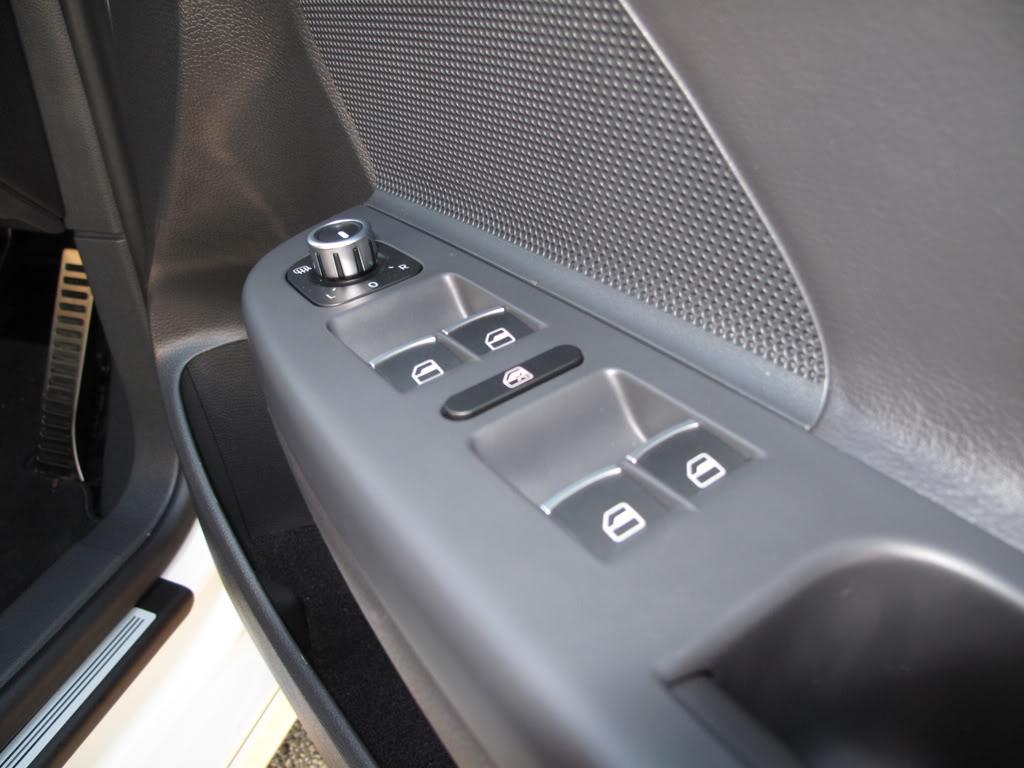

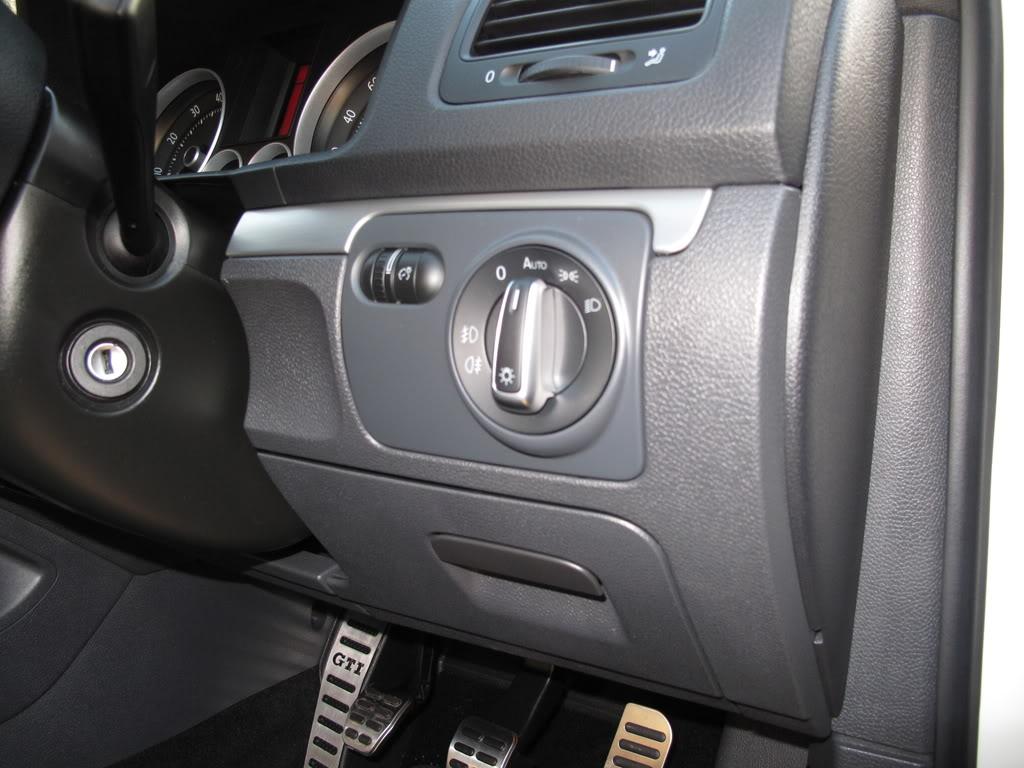

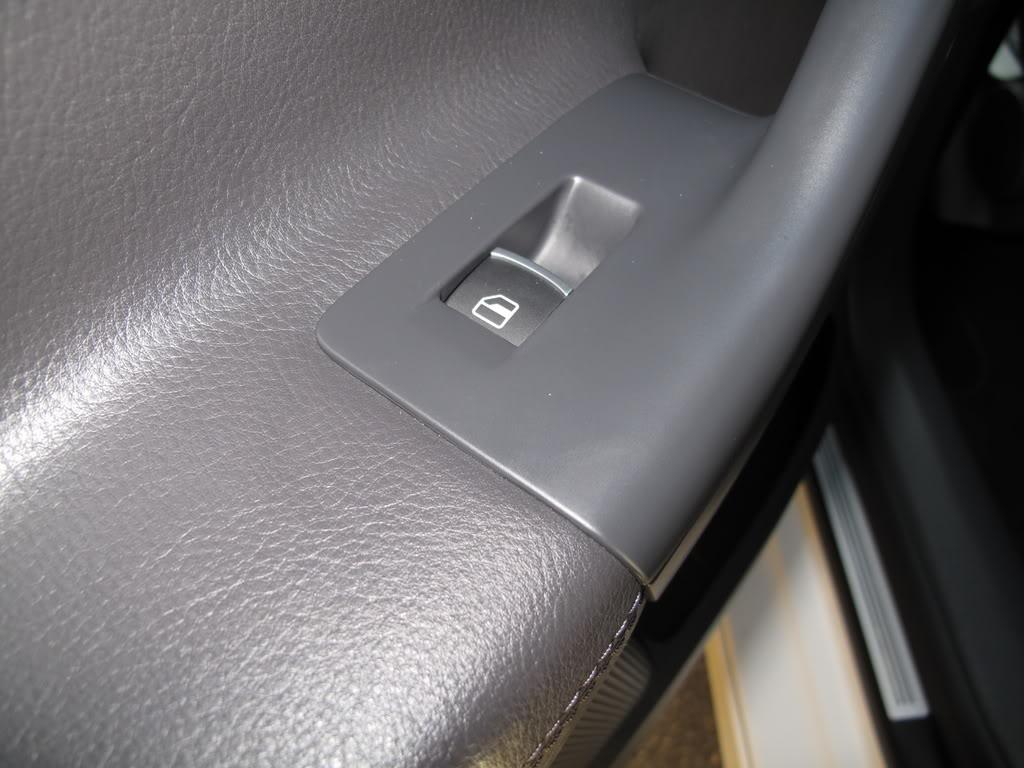

And all done

[Top Cat]

very thorough Shaun Excellent stuff.

[Greeners]

Nice one Shaun

I take it mine will be a bit cheaper as mine is a three door?

Can you PM me the E-bay seller details please mate?

[VC]

I should have all the technical drawings for the removal of the other bits if you want me to post them up?

[182_blue]

I should have all the technical drawings for the removal of the other bits if you want me to post them up?

yeh, why not

[VC]

Here you go mate:

Removing and installing switch module for driver side window lift

Special tools and workshop equipment required

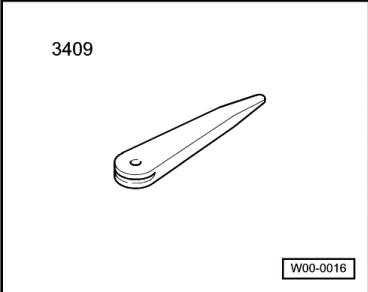

-   Removal wedge -VAS 3409-



NoteWhen removing and installing components that are in view (switches, covers, trim and so on), mask off areas in which tools (wedge -VAS 3409-, screwdriver) are used to prise out those components using commercially available adhesive tape.
The following components are integrated into the driver side window lifter switch module on 4-door vehicles:

- Front left window regulator switch -E40-
- Rear left window regulator switch in driver door -E53-
- Rear right window regulator switch in driver door -E55-
- Front right window regulator switch in driver door -E81-
- Childproof lock button -E318-
- Button illumination bulb -L76-

Note The above mentioned components cannot be replaced individually.

The following components are integrated into the driver side window lifter switch module on 2-door vehicles:
- Front left window regulator switch -E40-
- Front right window regulator switch in driver door -E81-
- Button illumination bulb -L76-

Note The above mentioned components cannot be replaced individually.

Removing

ââ,¬â€œ   Switch off ignition and all electrical consumers.

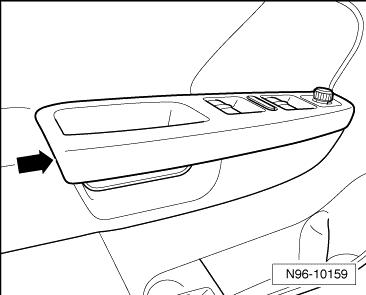

ââ,¬â€œ   Use the removal wedge -VAS 3409- or a screwdriver to carefully prise the mounting frame out of the door trim -arrow-.

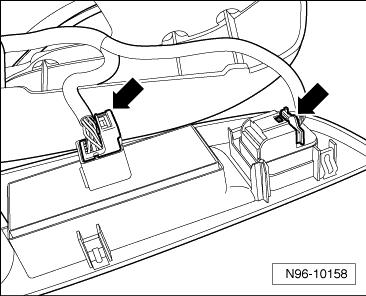

ââ,¬â€œ   Separate connectors -arrows-.

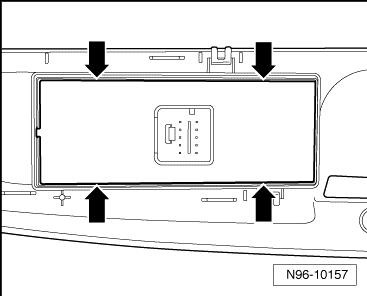

ââ,¬â€œ   Release locking lugs -arrows- and remove switch from installation frame.



Installing

Install in reverse order of removal.

[VC]

Removing and installing fuel tank flap release button -E319-

NoteThe fuel tank flap release button -E319- features integral button illumination -L76-, which must not be replaced individually.

Removing

ââ,¬â€œ   Switch off ignition and all electrical consumers.
ââ,¬â€œ   Remove door trim → Rep. Gr.70.

ââ,¬â€œ   Disconnect connector -arrow-.

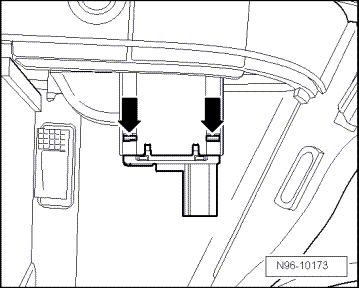

ââ,¬â€œ   Release locking lugs -arrows- and remove switch from door trim.



Installing

Install in reverse order of removal.



[182_blue]

Ahh, So it's a door panel off job

[VC]

Ahh, So it's a door panel off job

Afraid so by the looks of things, and yes...theres a guide for that too lol

tbh i think maybe leave the switch standard, your eye doesnt need to be drawn to it and you'll never really see it anyway

although it could bug you

[WhiteGTI]

Nice guide!

Thank for taking the time to do it

[JPC]

great right up shaun, and regards the bojo tools, there great. had a set for ages and they havent changed, bent, degraded in anyway. an absolute must for anybody doin any interior work.

[TagnuT]

I like the Light switch - same as the new Scirocco as well. Nice guide too..

[stealthwolf]

Nice write up.

Where'd you get the removal tools from?

[Hedge]

They are available on ebay. I think I just searched for trim removal tools.
Like this. http://cgi.ebay.co.uk/Sykes-Pickavant-5-Piece-Trim-Removal-Tool-Kit_W0QQitemZ390027833345QQcmdZViewItemQQptZUK_Hand_Tools_Equipment?hash=item390027833345&_trksid=p3286.c0.m14&_trkparms=72%3A1683|66%3A2|65%3A12|39%3A1|240%3A1318

[vRStu]

I have those type, pretty handy.
