Part number help needed

yin · February 05, 2011, 12:52:56 PM

Broke the hose off my charcoal canister can anybody give me part numbers for parts i need Thanks

or even just a ETKA screen shot

Maximum Suction · February 05, 2011, 02:09:56 PM

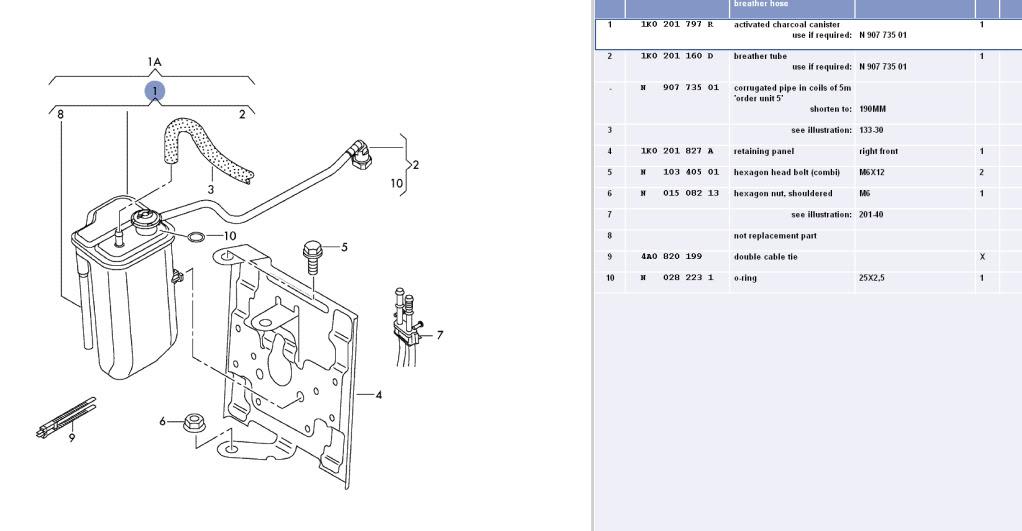

Think this is what your after....

vRS Carl · February 05, 2011, 02:26:55 PM

Part no. you need is 1K0 201 160 BG - Breather Pipe. Costs about £9 Inc Vat ( i replaced mine about 3 weeks ago)

That ETKA is a bit out of date and if you use the Part no. that has been highlighted you will get the full Cannister which is about £95 inc VAT

yin · February 05, 2011, 02:38:25 PM

Does 1K0 201 160 BG - Breather Pipe come with the plastic cap/plug in the top of the Canister if it does how do you get the old one out.

vRS Carl · February 05, 2011, 02:41:29 PM

Yes it does it's all attached.

It comes out by twisting anti clockwise about a 1/8 of a turn and then it pulls out. They are quite stiff and they are even stiffer to get in due to the O-Ring.

When you get the new one put a fine layer of oil on the O-Ring to get it to go in easier

yin · February 05, 2011, 02:47:04 PM

Quote from: vRS Carl on February 05, 2011, 02:41:29 PM
Yes it does it's all attached.

It comes out by twisting anti clockwise about a 1/8 of a turn and then it pulls out. They are quite stiff and they are even stiffer to get in due to the O-Ring.

When you get the new one put a fine layer of oil on the O-Ring to get it to go in easier

Cheers Carl got the cannister end off but how does the other end com off sorry for all the questions

vRS Carl · February 05, 2011, 02:50:05 PM

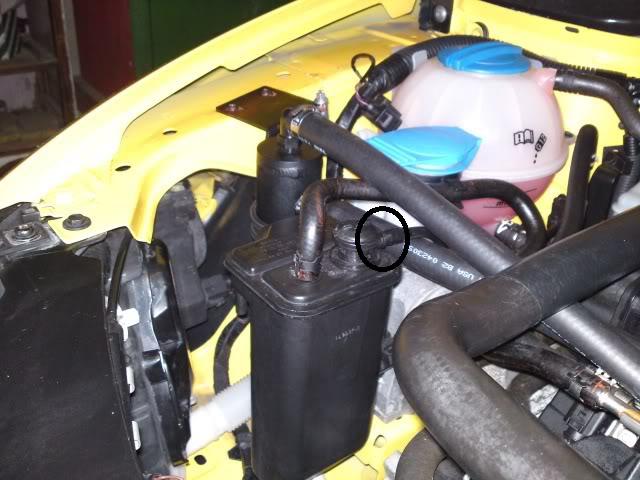

If you follow the pipe along with your hand to where it connects near the coolant bottle you will feel a little button on it at the end. Just press that in and it lifts straight off

yin · February 05, 2011, 02:53:41 PM

Thanks Carl got it all off

vRS Carl · February 05, 2011, 02:57:08 PM

Your welcome

yin · February 06, 2011, 04:37:58 PM

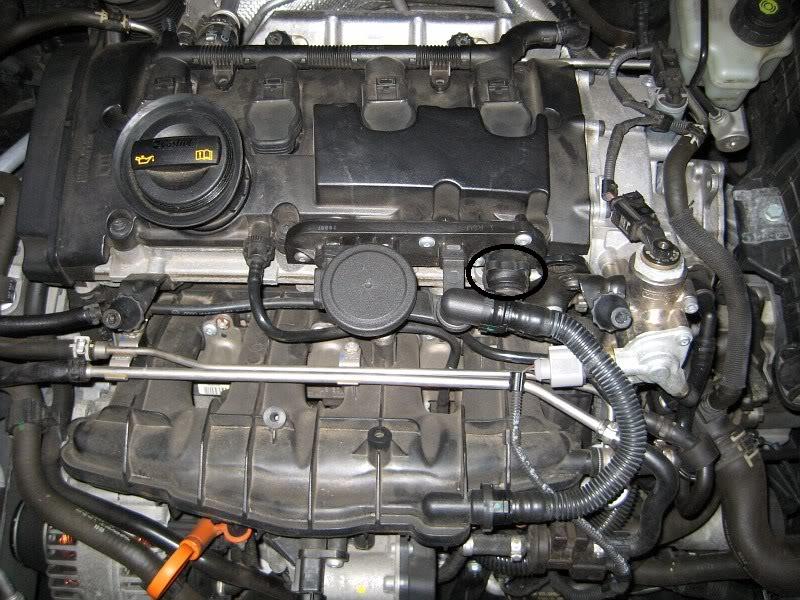

Carl have you got the part number for the oring as circled here

vRS Carl · February 06, 2011, 09:51:31 PM

Yin,

The O-Ring doesn't come on it's own. Its all part of the PCV as per the pics.

Depending on which bit you need the breather line (plastic hose) part no. is - 06F 103 212 D

The PCV is - 06F 129 101 L

The Gasket is - 06F 103 483 E

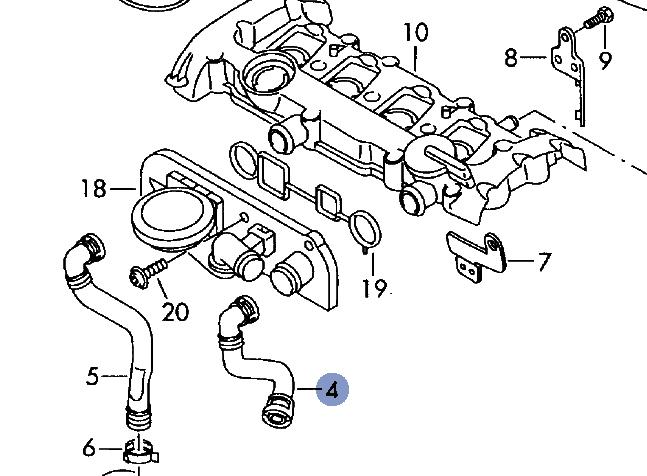

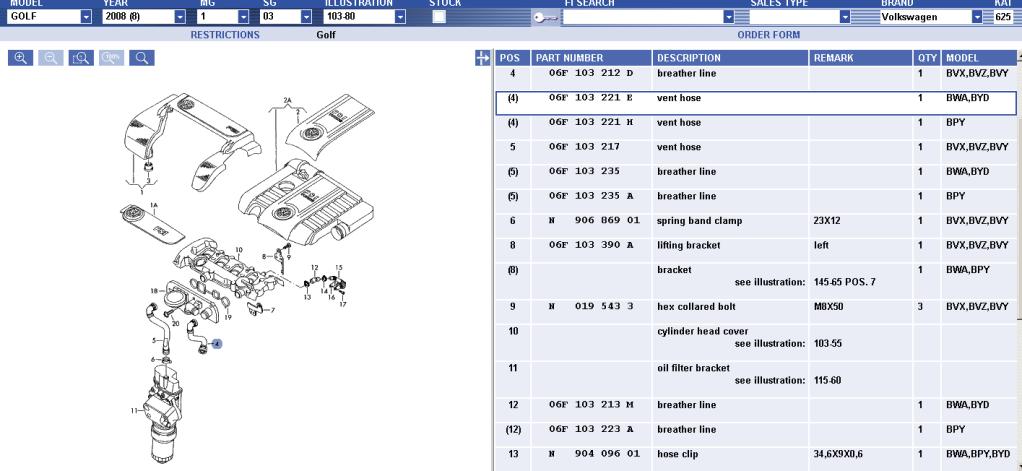

Some pics

HTH

Carl

vRS Carl · February 06, 2011, 09:55:52 PM

Having just looked on mine it's the Plastic hose (06F 103 212 D) that you need as the O-Ring is held within the end of the pipe

yin · February 06, 2011, 09:59:07 PM

Quote from: vRS Carl on February 06, 2011, 09:55:52 PM
Having just looked on mine it's the Plastic hose (06F 103 212 D) that you need as the O-Ring is held within the end of the pipe

yes just after the o ring as mine is split
