How to: RNS-510 Speed Camera locations on the Map Display
« on: February 13, 2009, 12:40:31 PM »
How to Add Speed Camera Locations as POI's on the map display of the RNS-510 Touch screen Navi.

This is a reasonably technical process and I will try to help anyone where possible but can't guarantee to always be able to solve the issues, I got this to work through trial and error to start with!

Firstly a big thanks to the various people on VwNavi.com who originally shared this info. Especially RDS++ who created the application that make this process a lot easier.
Original Thread where I found the info - http://vwnavi.com/forums/showthread.php?t=7358

What you need / what I use: -

1 – Original RNS-510 Navi DVD (I am using the v3 disc but this should work on older discs)

2 – PC running XP or Vista with a DVD Burner

3 – Blank DVD’s (I used DVD-R’s)

4 – A CD/DVD ISO creator program (I use UltraISO)

5 – The following Applications: -

i. A VI Type Text Editor (I used WinVI32)
ii. POI Inspector Application from RDS76 on Vwnavi (see thread above for download info)
iii. POI Editor (from http://www.poieditor.com/)
iv. DVD ISO Burning Program (I use Nero v8)

6 – POI Speed Camera Data (available from various sources either subscription based like PocketGPSWorld or some free downloads on the web, google is your friend!)

Stage 1 – Create an ISO image of the current Navi DVD.

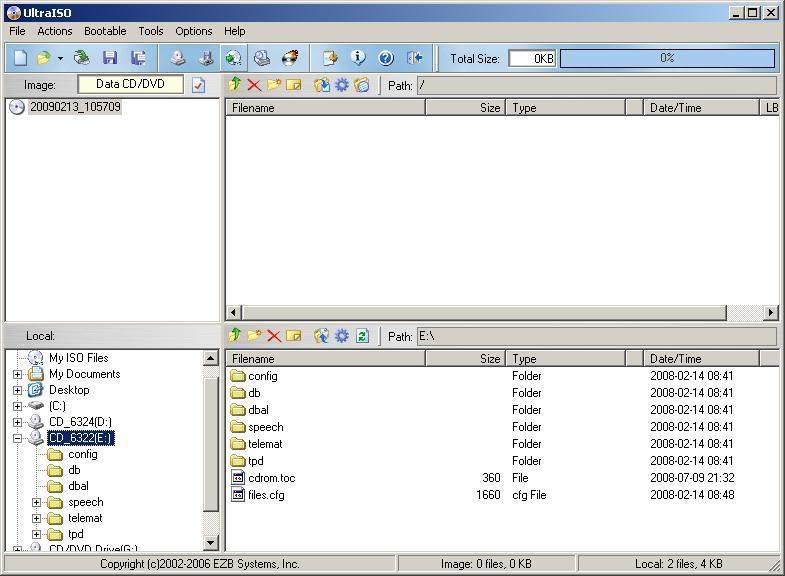

Open your ISO program and insert the disc.

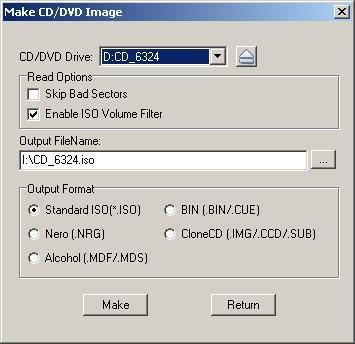

Select the Make CD/DVD Image option from the tools menu.



Create the Image as a standard ISO file.



Once finished leave the disc in the drive as you will need it later.

Stage 2 – Prepare your POI data

The POI data needs to be in the ASC type format, here’s an example of how this comes from the likes of PocketGPSWorld.



I now open each of the files in the POI Editor program and create one ASC file for each of the categories I want to display on the RBNS-510.

So for me I add all of the fixed camera types into one per speed limit type (i.e. one file containing all the fixed camera locations for 60mpg speed limit), I then also group the mobile camera locations in to on file and also the same for the traffic light cameras.

NOTE – You can only have a maximum of 10 icons types on the map view of the RNS-510 at any one time so this is why I group mine like this.

To add data from other files/camera location open these in separate window in the POI Editor program and then copy and paste the relevant data.

Stage 3 – Create IDX Files for RNS-510 Disc

Open the POI Inspector program

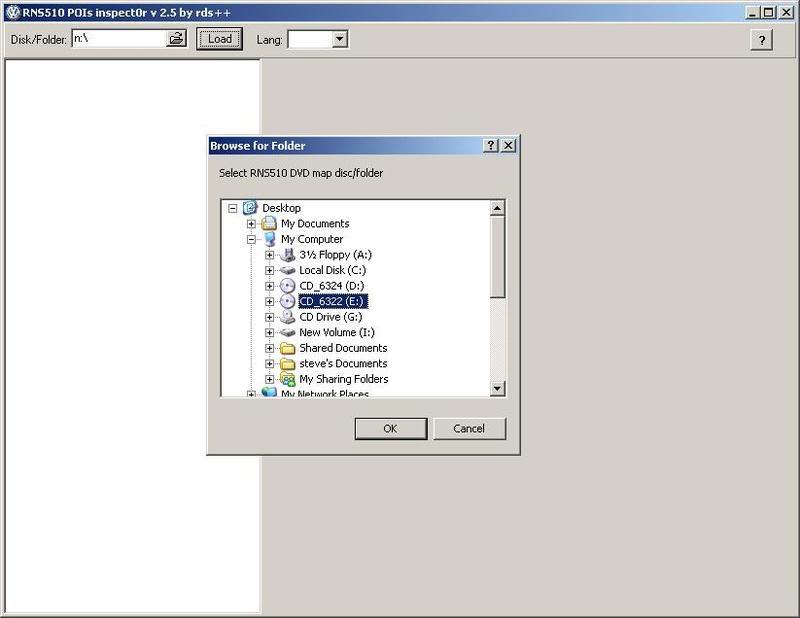

From the drop down at the top select the DVD drive where you current RNS-510 mapping disc is loaded and click on load.

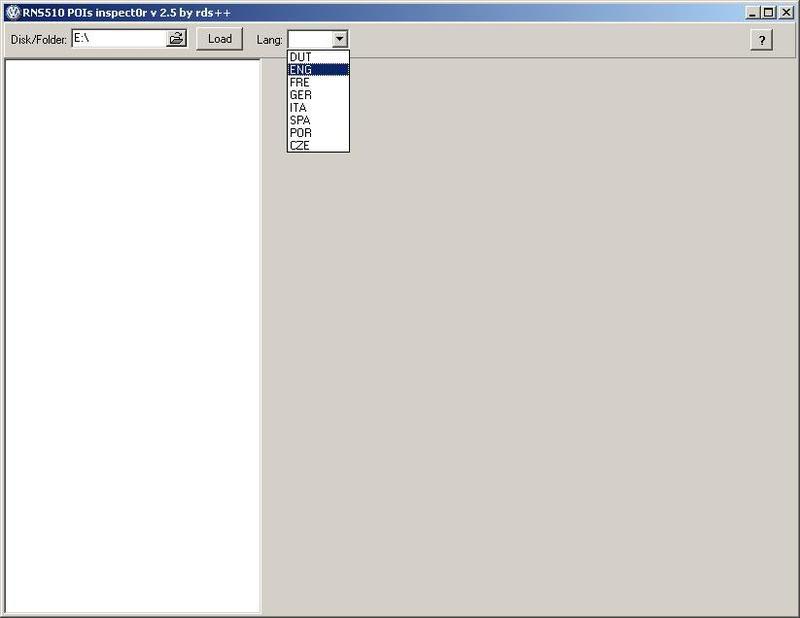

Now select ENG from drop down that will open.

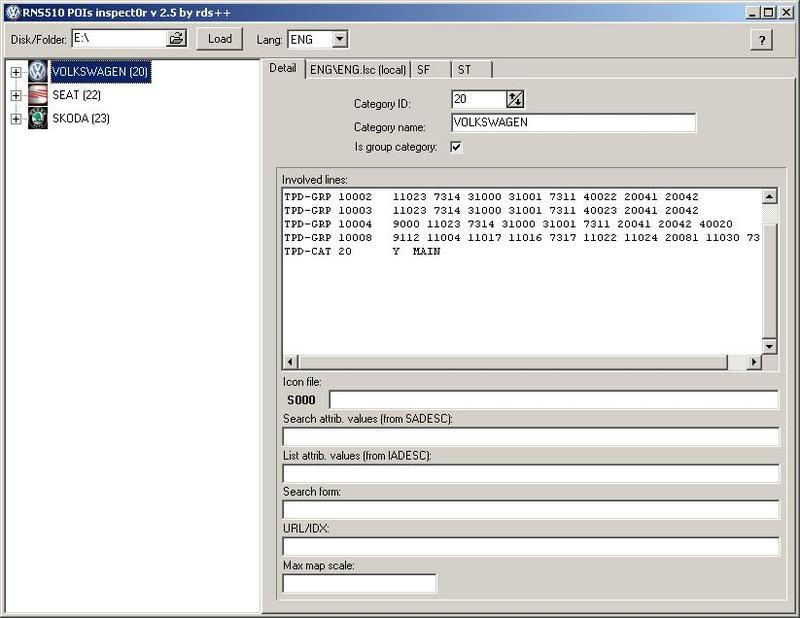

You should now have a screen like this: -




Now expand the section you want to add the cameras to, this will become the place they are listed on the POI map options in the RNS-510 menu. I used “CAR AND TRAVEL” as the base category and create a sub folder under here for “Speed Cameras”.

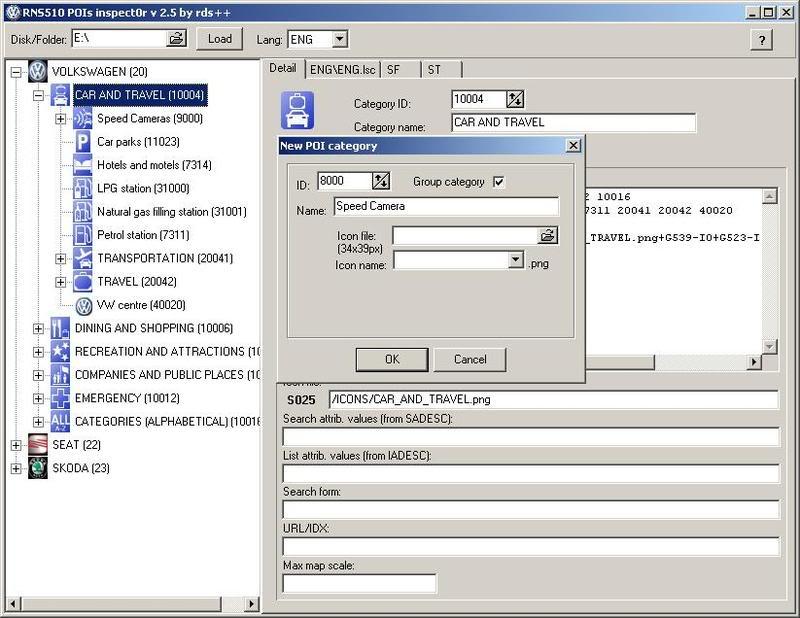

You do this by right clicking on the group and selecting “Add POI/Group Category”, then select “as 1st Child”. Now set the “Group Category” flag enter the relevant details from the category name and select a file to be used as the icon. (Again have a Google search and you will find various sources for these icons).

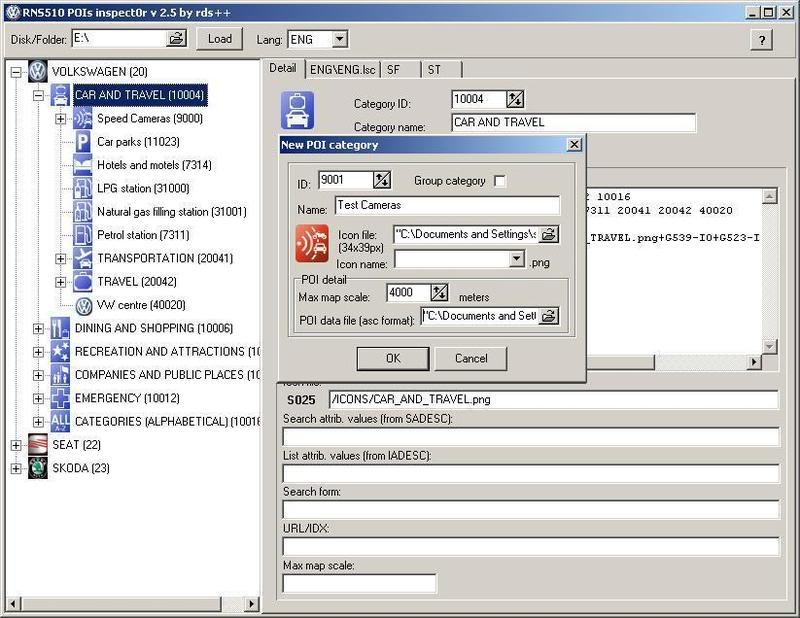

Now select the new group category you have just created and right click on it again. Again select “Add POI/Group Category”, then select “as 1st Child”.  You are now creating the entries for each of the camera types you have created the ASC files for. For each of these do not click on the “Group Category”  option instead enter the details as before (camera type name and icon file to use) and now select the ASC file to containing the camera data for this type )as created in Step 2).



After a few seconds the “saved” message should be displayed. And the screen will refresh to show your newly added camera type.



Repeat this for the remaining camera types.

Stage 4 – Create updated ISO Image

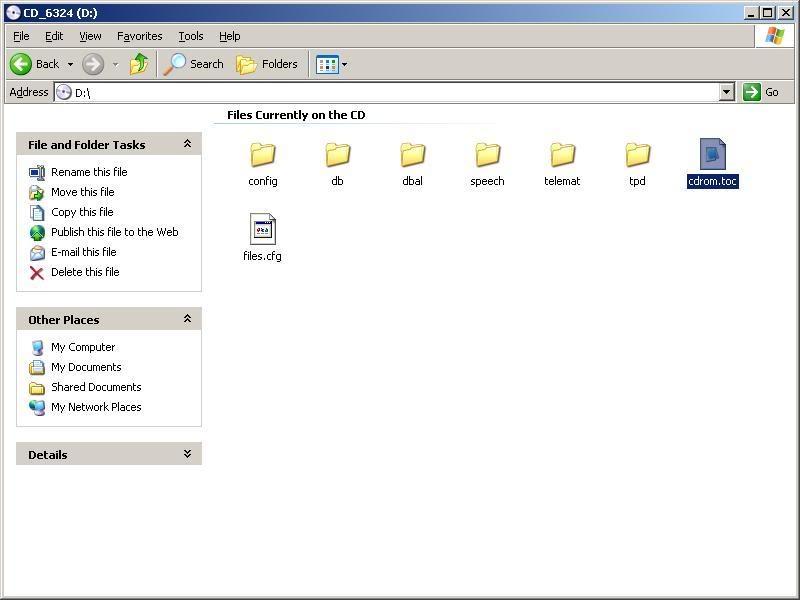

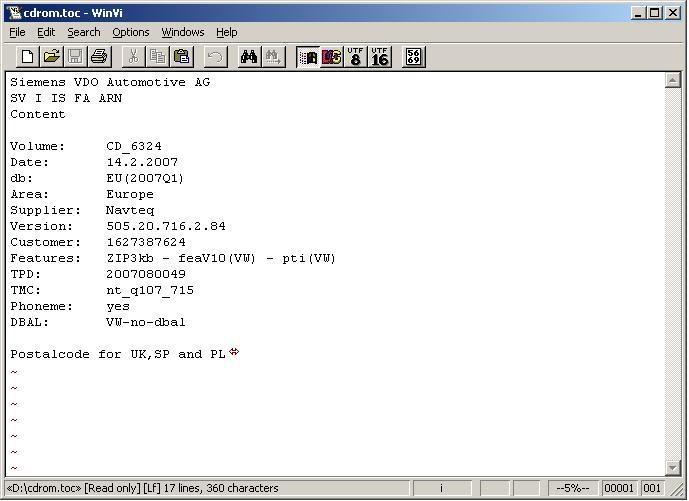

Firstly copy the CDROM.TOC file from the root of the Navi DVD and open the file with the VI Text editor.



Now update the volume number and increment this by one, make sure you don’t add or remove any extras spaces in the file. Now
save a copy of the file for later. (In my example I am at 6324, but you will probably have a lower number, this is due to me creating several versions of the disc already).



Now start the ISO program again and open the ISO file you created from the original Navi disk earlier.

Next right click on the disk title and rename it to the same number you put in the CDROM.TOC file.

Now copy in the new version of the CDROM.TOC file you have just created to overwrite the existing file on the root of the DVD image.

Now expand the TPD folder and click on the ntcWeu_eu_20070806 folder (name of this may be different if using an older disc)

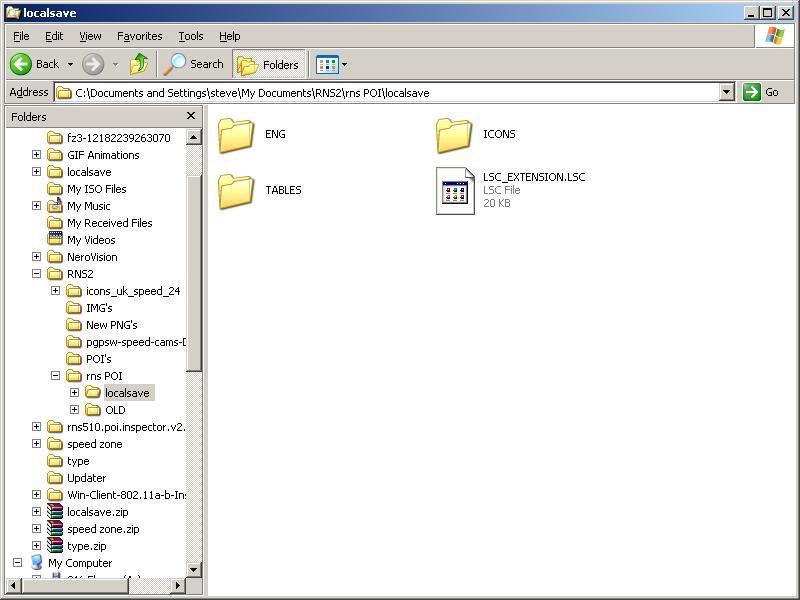

Now from the folder there you ran the POI Inspector program from ealier you should have a sub folder called “localsave” -




Copy all of the contents from this folder into the path you have opened in the ISO program, if prompted select “overwrite”.

Now save the image in the ISO program (i would recommend you save it as the same name as the disc title).


Stage 5 – Burning the Disc

Once the image creation has finished you cna now burn it to a disc using your preferred burning program. I use Nero and always select the slowest speed available for burning the disc.

Stage 6 – Loading the Updated Maps to the RNS-510

Once you have the disc ready here the steps to enable the features.

First restart the Navi unit by pressing the three highlighted buttons below

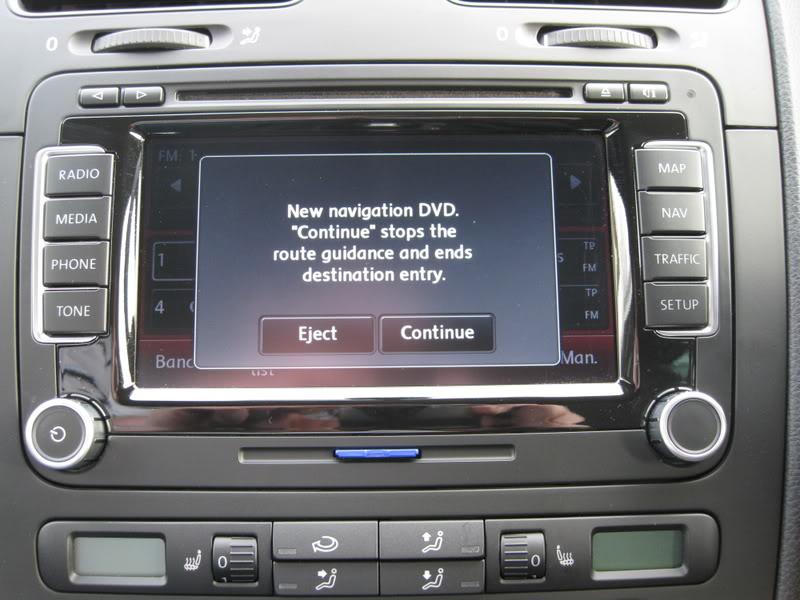

Once the unit fully starts up again insert the new disc. After a few seconds the following message will be displayed.

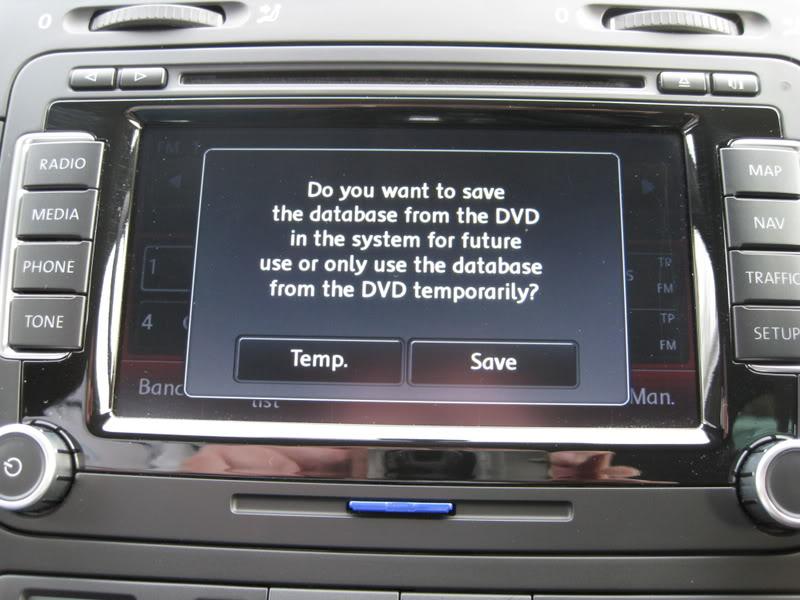

Next you will be prompted with the following message, select "Save"





The navi will now copy the updated maps to the Hard Drive of the unit, this can take upto one hour.

After an hour you need to eject the disc and restart the navi again.

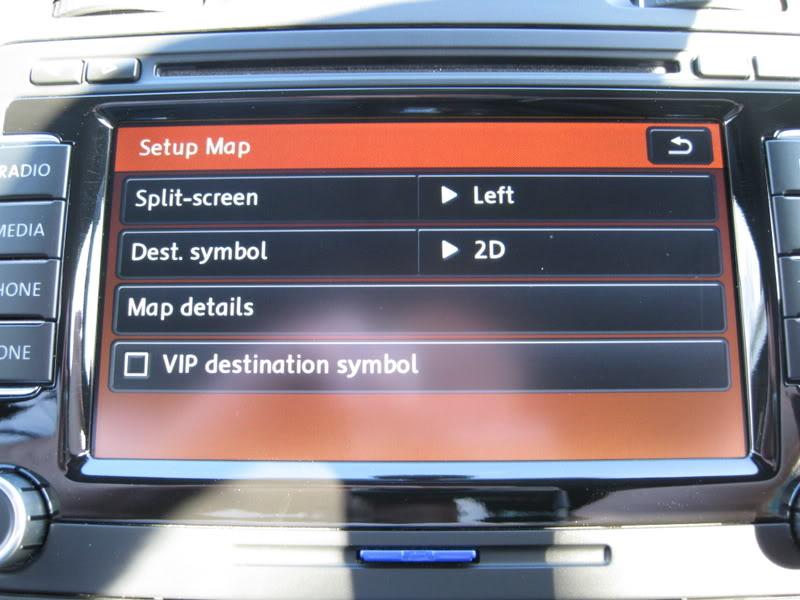

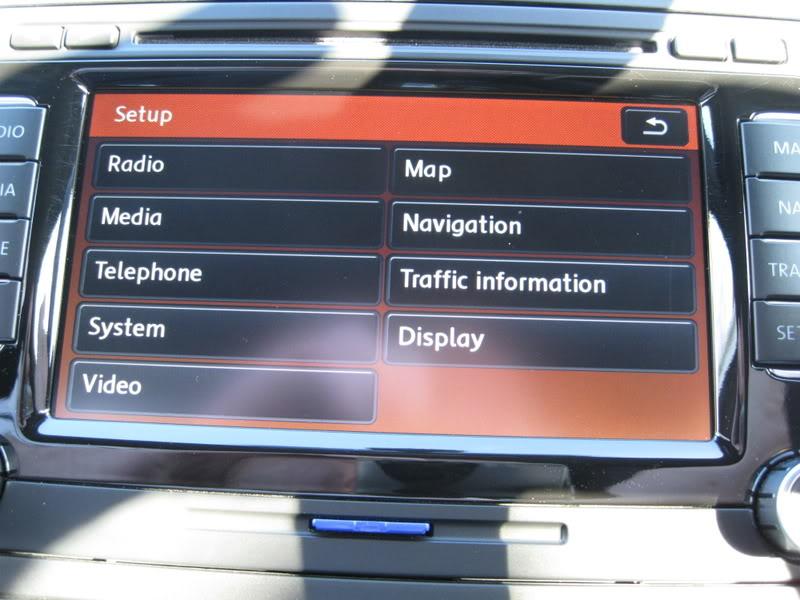

Once back up and running press "Setup", and then select "Map"





Now select "Map Details"





Then "CAR AND TRAVEL"





Then "Speed Cameras"





Now tick the icons you wish to display on the map view (up to 10 icons).





Press "OK" to confirm your selections.


Now restart the Navi once more.

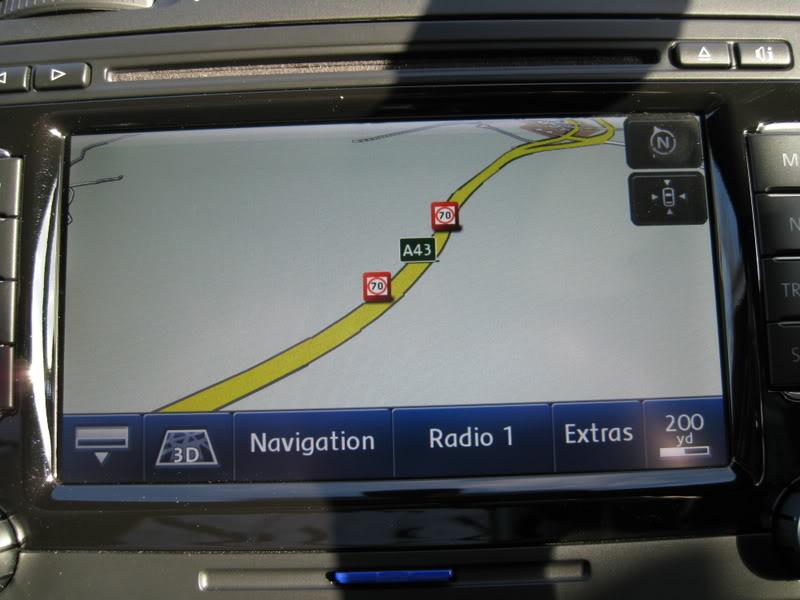

When the systems loads back up the icons will automatically display on the map as shown below: -





I hope you find this of some use  :happy2:


----------------------------------------------------------------------------------------------------------------------------------

Update: -

Following a number of requests here is a link to the icon files I have created for the process

Download Icons
« Last Edit: January 30, 2010, 07:58:10 PM by SteveP »

Offline 182_blue

  • Global Moderator
  • Just look at my post count
  • *
  • Thank You
  • -Given: 20
  • -Receive: 54
  • Posts: 3373
Re: How to: RNS-510 Speed Camera locations on the Map Display (**Draft **)
« Reply #1 on: February 13, 2009, 12:54:33 PM »
Nice guide mate  :happy2:

Offline JPC

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 93
  • -Receive: 111
  • Posts: 6222
Re: How to: RNS-510 Speed Camera locations on the Map Display (**Draft **)
« Reply #2 on: February 13, 2009, 03:07:28 PM »
wow...great stufff. will have a read when im at home! well done steve

Offline john_o

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 134
  • -Receive: 100
  • Posts: 2897
    • My Car Blog
Re: How to: RNS-510 Speed Camera locations on the Map Display (**Draft **)
« Reply #3 on: February 13, 2009, 04:05:31 PM »
nice writeup Steve  :happy2: If I could afford the RNS Id be well chuffed
Red ED35 5dr DSG
DEFI boost guage / RTech Stage 1 Engine/DSG
BLOG | BUILD

matt a

  • Guest
Re: How to: RNS-510 Speed Camera locations on the Map Display (**Draft **)
« Reply #4 on: February 13, 2009, 04:23:09 PM »
Really impressive stuff, and great write up.

Offline Top Cat

  • Top cat
  • Just look at my post count
  • ******
  • Thank You
  • -Given: 171
  • -Receive: 335
  • Posts: 8196
  • Almost Jacamo
Re: How to: RNS-510 Speed Camera locations on the Map Display (**Draft **)
« Reply #5 on: February 13, 2009, 06:00:23 PM »
We dont call him MR Geek for nothing you know.   :signLOL:  :innocent:

hufcforpromotion

  • Guest
Re: How to: RNS-510 Speed Camera locations on the Map Display (**Draft **)
« Reply #6 on: February 13, 2009, 08:28:22 PM »
Great write up! Any chance of getting hold of a disc?

Offline SteveP

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 117
  • -Receive: 338
  • Posts: 6005
    • My Project
Re: How to: RNS-510 Speed Camera locations on the Map Display
« Reply #7 on: February 13, 2009, 09:38:28 PM »
Update, the How to guide is now complete with the final instructions  :happy2:


Offline golfman

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 17
  • -Receive: 35
  • Posts: 1088
  • If your not first your last!!!
    • Email
  • My Ride: http://www.mk5golfgti.co.uk/forum/index.php/topic,69645.0.html
Re: How to: RNS-510 Speed Camera locations on the Map Display
« Reply #8 on: February 13, 2009, 10:44:03 PM »
You da man steve excellent work,thank you for sharing this cant wait to do this on my RNS510 :happy2:

Modded The Way I Like It!!!!!!
Vag-com Hex+Can in scotland
I Hate Timewasters...

Offline xxx_mojo_xxx

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 39
  • -Receive: 17
  • Posts: 1406
  • MUBster DUBster
    • Project MUBster DUBster Evolution
    • Email
Re: How to: RNS-510 Speed Camera locations on the Map Display
« Reply #9 on: February 15, 2009, 12:57:55 PM »
This is great - I will provide an additional post once I have gone through the process.

Before then, I'd be interested to know if there was any way of providing audible feedback when a speed camera POI comes on the sat nav screen - similar to some of the Tom Toms.

That really would be the icing on the cake.

Thanks,

Mo

Offline 182_blue

  • Global Moderator
  • Just look at my post count
  • *
  • Thank You
  • -Given: 20
  • -Receive: 54
  • Posts: 3373
Re: How to: RNS-510 Speed Camera locations on the Map Display
« Reply #10 on: February 15, 2009, 01:10:46 PM »
This is great - I will provide an additional post once I have gone through the process.

Before then, I'd be interested to know if there was any way of providing audible feedback when a speed camera POI comes on the sat nav screen - similar to some of the Tom Toms.

That really would be the icing on the cake.

Thanks,

Mo

sounds are not possible, well they wasnt when i last looked

Offline mortygttdi

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 44
  • -Receive: 145
  • Posts: 2370
Re: How to: RNS-510 Speed Camera locations on the Map Display
« Reply #11 on: February 19, 2009, 07:25:52 PM »
Surely this should work with the mfd2 aswell?  its just a disc update with new poi the mfd2 is just getting info from the disc and already has poi on it so in theory should do the same has the rns510???

Has anyone tried it on the mfd2? if not I would be willing to have a go

Darren

Offline SteveP

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 117
  • -Receive: 338
  • Posts: 6005
    • My Project
Re: How to: RNS-510 Speed Camera locations on the Map Display
« Reply #12 on: February 21, 2009, 09:45:53 AM »
Surely this should work with the mfd2 aswell?  its just a disc update with new poi the mfd2 is just getting info from the disc and already has poi on it so in theory should do the same has the rns510???

Has anyone tried it on the mfd2? if not I would be willing to have a go

Darren

Sorry Darren but the format of the data on the discs is totally different and from the research I have done it's isn't currently possible to do this on the DVD based MFD2 unit's.

Offline mortygttdi

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 44
  • -Receive: 145
  • Posts: 2370
Re: How to: RNS-510 Speed Camera locations on the Map Display
« Reply #13 on: February 21, 2009, 02:37:53 PM »
Hi I did have a go any way but couldn't even make a backup of the original dvd on ultraiso???

Darren

Offline SteveP

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 117
  • -Receive: 338
  • Posts: 6005
    • My Project
Re: How to: RNS-510 Speed Camera locations on the Map Display
« Reply #14 on: February 21, 2009, 02:43:23 PM »
Thats part of the issue, the older VW navi discs has some basic copy protection as well.  :fighting2:
