Re: fitting THS side engine mounts...
« Reply #15 on: October 14, 2010, 06:25:41 AM »
Just to let everyone know that I have never had an issue with re using any of those bolts.  Not even VW bother with new ones.
www.akstuning.co.uk - info@akstuning.com - 01234 822324
Follow AKS tuning on Facebook

Offline john_o

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 125
  • -Receive: 97
  • Posts: 2848
  • oh the irony
    • My Car Blog
Re: fitting THS side engine mounts...
« Reply #16 on: October 14, 2010, 07:43:57 AM »
cheers Alex  :happy2:
same torque settings too? and would you use threadloc ? (I know some people shy away as it changes the torque settings)
Black ED30 3dr manual : No 1369
REVO Stg1 | WALK | DEFI | THS side +VWR Road Lower+PF | S3 calipers/340mmXDDiscs/DS2500 | B12 Sportline
BLOG | BUILD

Offline vRSAlex

  • Admin
  • Just look at my post count
  • *
  • Thank You
  • -Given: 39
  • -Receive: 264
  • Posts: 2752
    • Email
  • My Ride: http://www.mk5golfgti.co.uk/forum/index.php?PHPSESSID=ru6835e84uer9ls2q7fafi9qt0&/topic,19941.0.html
Re: fitting THS side engine mounts...
« Reply #17 on: October 14, 2010, 09:59:04 AM »
cheers Alex  :happy2:
same torque settings too? and would you use threadloc ? (I know some people shy away as it changes the torque settings)

I wouldnt worry about the threadloc.  Just set to VW specs and you should be fine.
www.akstuning.co.uk - info@akstuning.com - 01234 822324
Follow AKS tuning on Facebook

Offline SteveP

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 117
  • -Receive: 329
  • Posts: 6005
    • My Project
Re: fitting THS side engine mounts...
« Reply #18 on: October 23, 2010, 06:23:32 PM »
Thanks for the torque guide John_o  :happy2:

Did mine this afternoon and I a really impressed the quality is top notch and had made a noticeable difference straightaway without being too invasive in the cabin  :party:

Offline Cupra R

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 18
  • -Receive: 12
  • Posts: 519
    • Email
Re: fitting THS side engine mounts...
« Reply #19 on: October 23, 2010, 07:16:05 PM »
Thanks for the torque guide John_o  :happy2:

Did mine this afternoon and I a really impressed the quality is top notch and had made a noticeable difference straightaway without being too invasive in the cabin  :party:

How long did it take you Steve?

Offline RobH

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 3
  • -Receive: 9
  • Posts: 581
  • Revo stg 2+
Re: fitting THS side engine mounts...
« Reply #20 on: October 23, 2010, 07:28:16 PM »
Thanks for the torque guide John_o  :happy2:

Did mine this afternoon and I a really impressed the quality is top notch and had made a noticeable difference straightaway without being too invasive in the cabin  :party:

How long did it take you Steve?

Tut tut you should have fitted the these for the pod Rich :rolleye:

Off the line grip is a good improvement :happy2:

Offline Cupra R

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 18
  • -Receive: 12
  • Posts: 519
    • Email
Re: fitting THS side engine mounts...
« Reply #21 on: October 23, 2010, 07:34:29 PM »
Thanks for the torque guide John_o  :happy2:

Did mine this afternoon and I a really impressed the quality is top notch and had made a noticeable difference straightaway without being too invasive in the cabin  :party:

How long did it take you Steve?

Tut tut you should have fitted the these for the pod Rich :rolleye:

Off the line grip is a good improvement :happy2:

I know mate, but I just haven't had the time.  I'd only just finished work when I phoned you earlier.  Busy busy lately at work.

P.S.I told you I aint no good at drag races anyhow, I'm sure these wouldn't of helped me out lol.  Now on the track, that's a different matter  :P
« Last Edit: October 23, 2010, 07:36:15 PM by Cupra R »

Offline SteveP

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 117
  • -Receive: 329
  • Posts: 6005
    • My Project
Re: fitting THS side engine mounts...
« Reply #22 on: October 23, 2010, 08:13:02 PM »
Thanks for the torque guide John_o  :happy2:

Did mine this afternoon and I a really impressed the quality is top notch and had made a noticeable difference straightaway without being too invasive in the cabin  :party:

How long did it take you Steve?

Just over an hour for the side mounts  :happy2:

Offline Cupra R

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 18
  • -Receive: 12
  • Posts: 519
    • Email
Re: fitting THS side engine mounts...
« Reply #23 on: October 23, 2010, 08:22:18 PM »
Thanks for the torque guide John_o  :happy2:

Did mine this afternoon and I a really impressed the quality is top notch and had made a noticeable difference straightaway without being too invasive in the cabin  :party:

How long did it take you Steve?

Just over an hour for the side mounts  :happy2:

Thanks Steve.  :drinking:

Offline SteveP

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 117
  • -Receive: 329
  • Posts: 6005
    • My Project
Re: fitting THS side engine mounts...
« Reply #24 on: October 23, 2010, 08:25:12 PM »
No probs, it's very easy to do and I certainly wouldn't be paying anyone to do these if you have the tools available.  :happy2:

Offline Cupra R

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 18
  • -Receive: 12
  • Posts: 519
    • Email
Re: fitting THS side engine mounts...
« Reply #25 on: October 23, 2010, 08:32:57 PM »
No probs, it's very easy to do and I certainly wouldn't be paying anyone to do these if you have the tools available.  :happy2:

TBH I haven't really looked into doing them yet as I just haven't had the chance.  Does much need removing or anything?  Did you just support the engine from underneathe then change the mount's?

Any pointer's you can give would be appreciated  :happy2:

Offline SteveP

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 117
  • -Receive: 329
  • Posts: 6005
    • My Project
Re: fitting THS side engine mounts...
« Reply #26 on: October 23, 2010, 08:55:40 PM »
THe below is all off the top of my head could be slightly wrong: -

Tools Needs: -

19, 13 & 10mm Sockets
16mm deep Socket
Couple of medium and long extension bars
T20 Torx Screwdriver
Jack and a wooden block to support the engine
Also found a magnetic pick up tool very helpful  :grin:

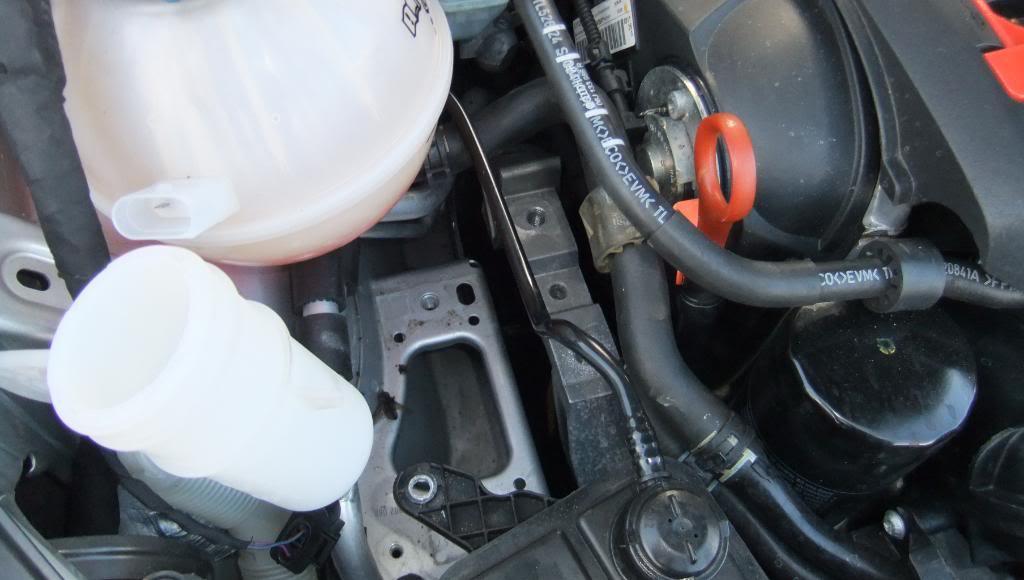

On the drivers side mount I removed the bolts/screws for the washer filler neck, charcoal cannister and expansion tank, then unbolted the side support bracket. Then you can get at the mount, that's unbolted by removing the2 x 16mm bolts and 2 x 19mm bolts.

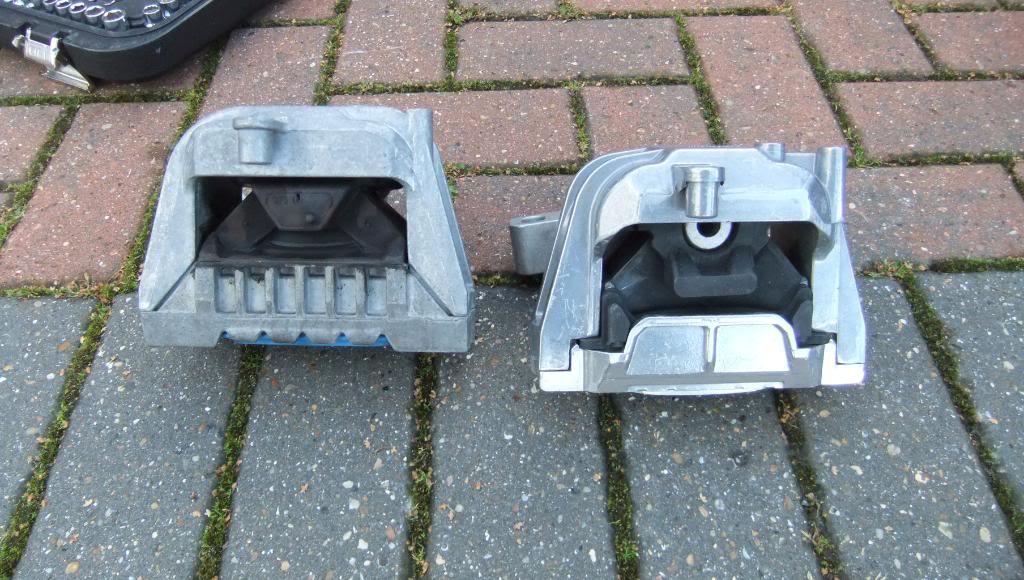

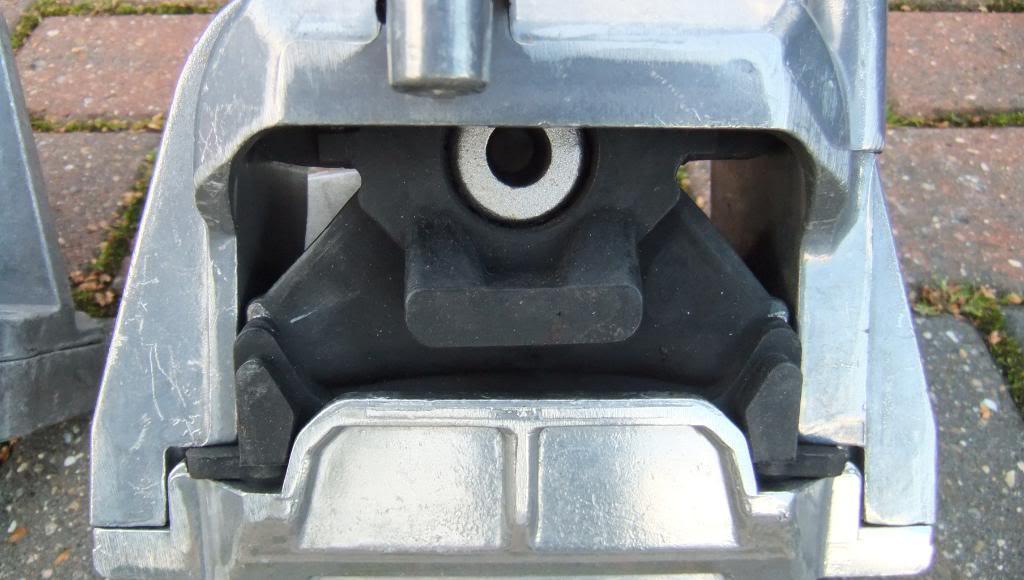

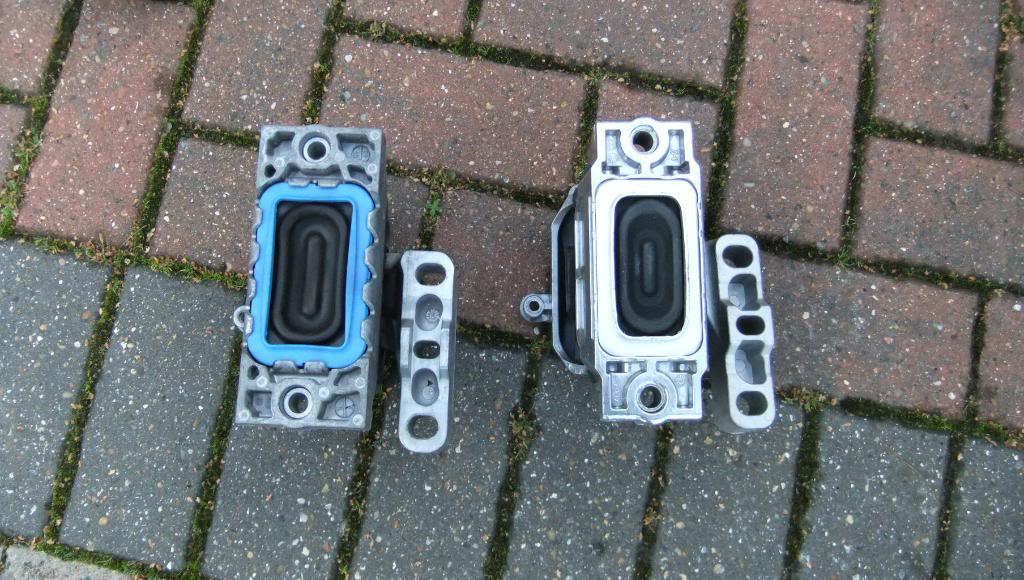

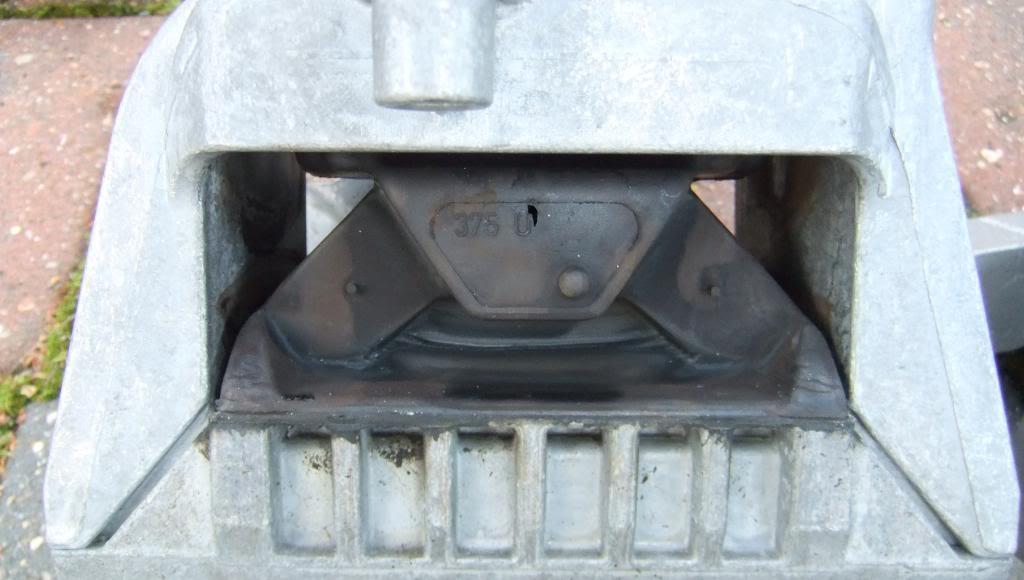

Pics of the driver side mount: -

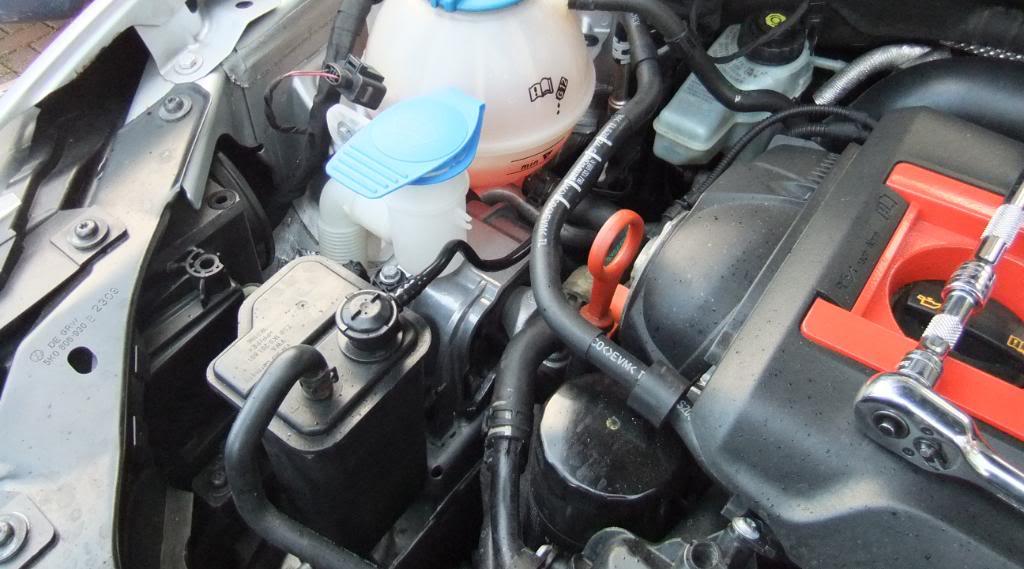

This side done: -



For the passenger side mount, the battery and battery tray (3 x 13mm bolts) need to be removed, then unclip the wiring loom tray the rest on top of the mount. Then unbolt the three 19mm bolts on the engine side of the mount and the 4 x 19mm.

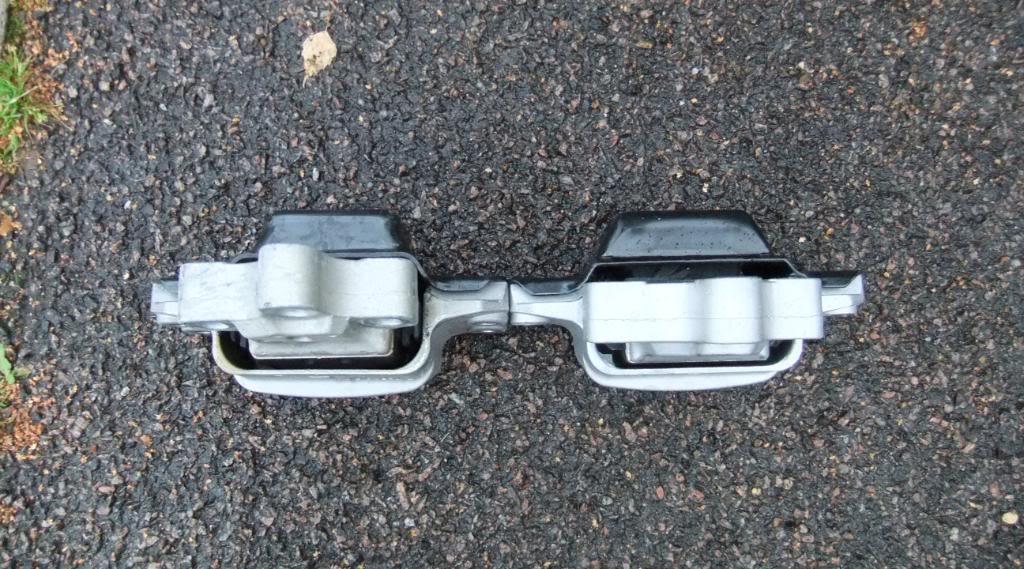

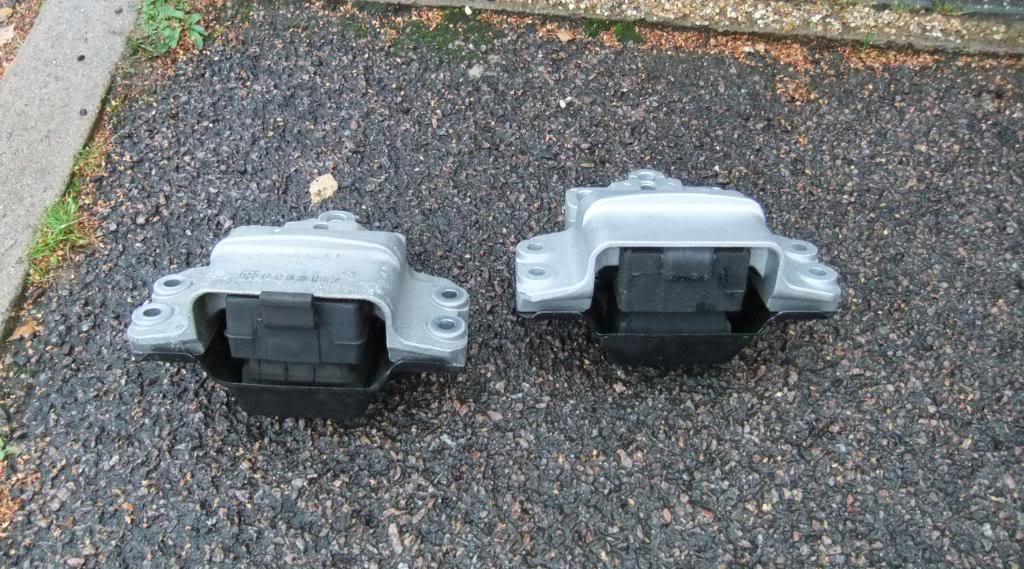

Pics of the Passenger side: -

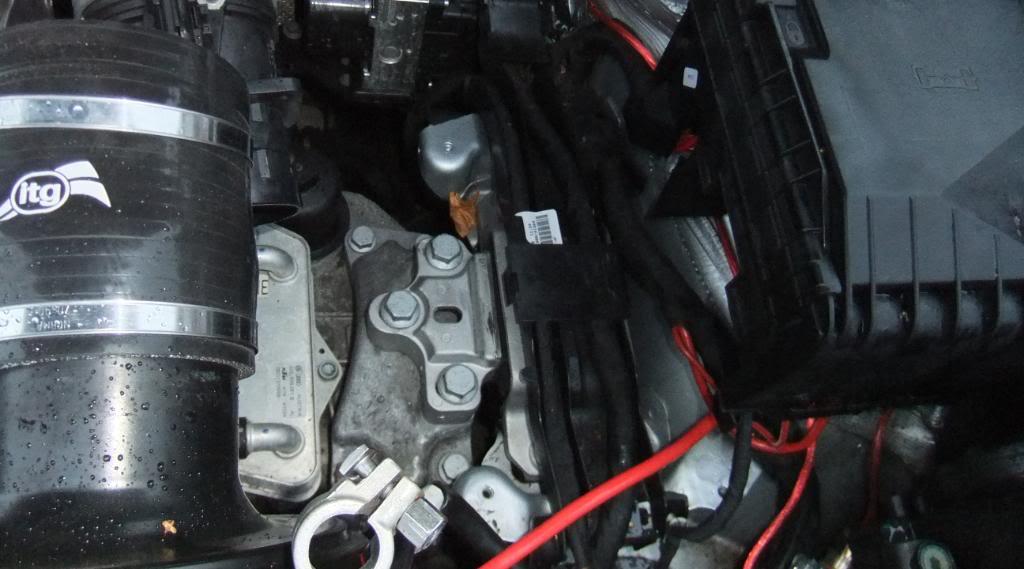

This side done



HTH  :happy2:

Offline Cupra R

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 18
  • -Receive: 12
  • Posts: 519
    • Email
Re: fitting THS side engine mounts...
« Reply #27 on: October 23, 2010, 09:00:23 PM »
Steve.  That is blumming perfect mate.  Thanks very much.

Now all I need is the time to be able to start and finish it.  :happy2:

Nice one.  :drinking:

h4rdy

  • Guest
Re: fitting THS side engine mounts...
« Reply #28 on: October 23, 2010, 10:38:03 PM »
Steve,

Maybe a silly question, but do you need to support the engine or because your only changing one at a time you don't need too?

J

Offline vRSAlex

  • Admin
  • Just look at my post count
  • *
  • Thank You
  • -Given: 39
  • -Receive: 264
  • Posts: 2752
    • Email
  • My Ride: http://www.mk5golfgti.co.uk/forum/index.php?PHPSESSID=ru6835e84uer9ls2q7fafi9qt0&/topic,19941.0.html
Re: fitting THS side engine mounts...
« Reply #29 on: October 24, 2010, 10:15:36 AM »
Steve,

Maybe a silly question, but do you need to support the engine or because your only changing one at a time you don't need too?

J

Yes you do need to as the lower mount cant support the weight.

Steve, you say use a deep 19mm socket, but dont you mean a deep 18mm?
