Re: The ultimate Dyno Graph thread
« Reply #15 on: July 31, 2010, 01:00:23 AM »
Ok , I hope you are ready for this. It may take a few edits before I get them all on, but here goes...

Car:  Golf GTI Edition 30 DSG

tuner/stage/settings :- Various for different dyno's, but I'll explain as I go

Modifications :-  Various for different dyno's, but I'll explain as I go

Type of Dyno/operator  :- Various

1st Dyno ever!

tuner/stage/settings :- Move from stock to APR stage 1

Modifications :-  Tune only

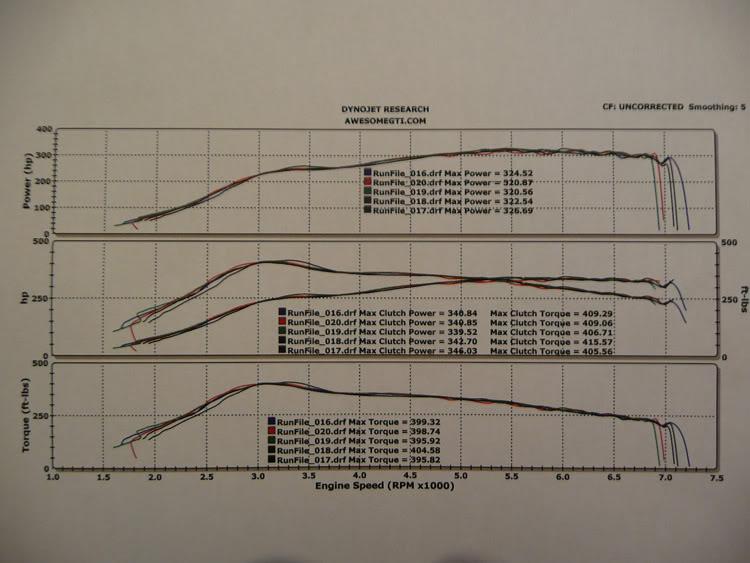

Type of Dyno/operator  :- Dynojet at Awesome GTI



tuner/stage/settings :- Custom Code Stage 2+

Modifications :-  Milltek full TBE, Carbonio intake with pipercross panel filter, Autotech HPFP, Forge DV, Forge Twintercooler

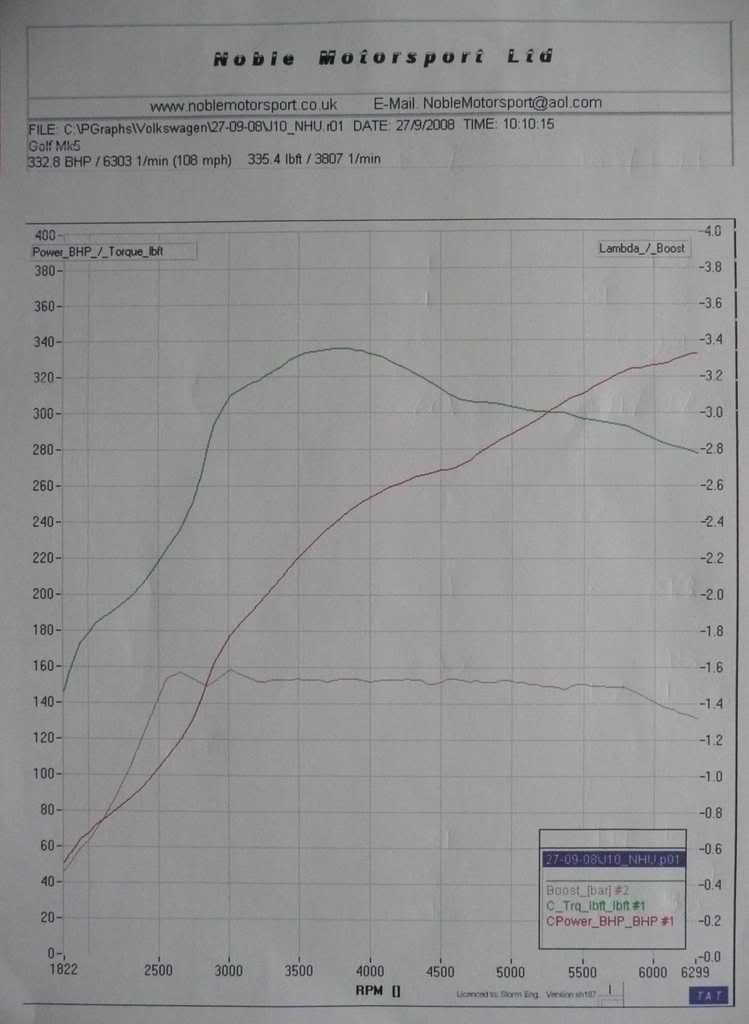

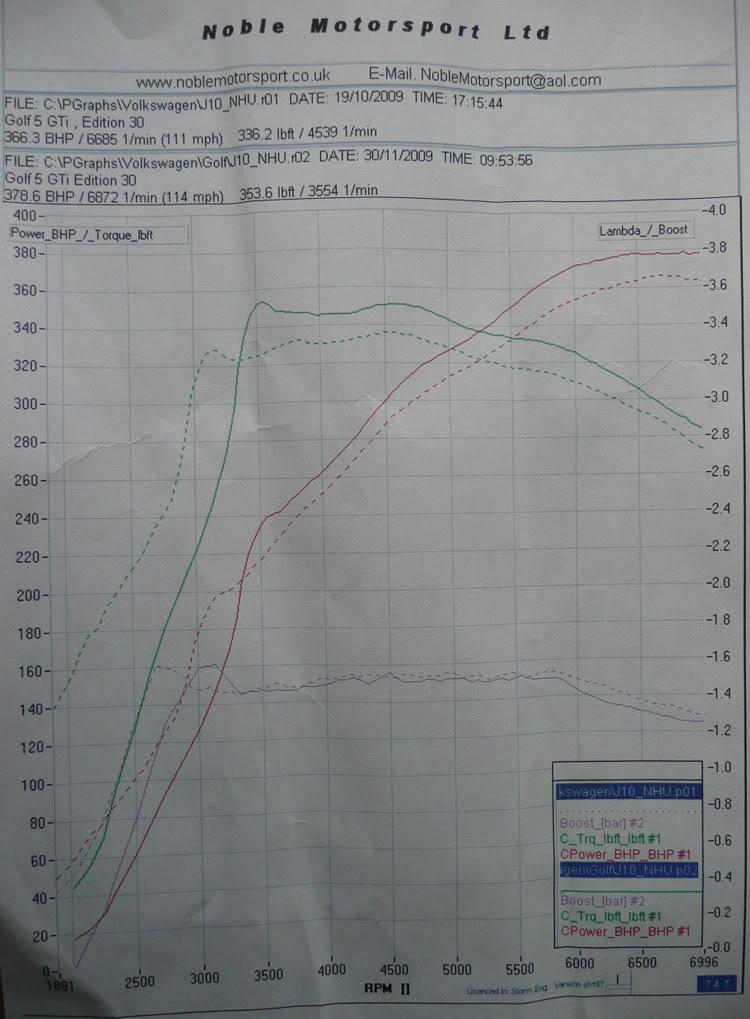

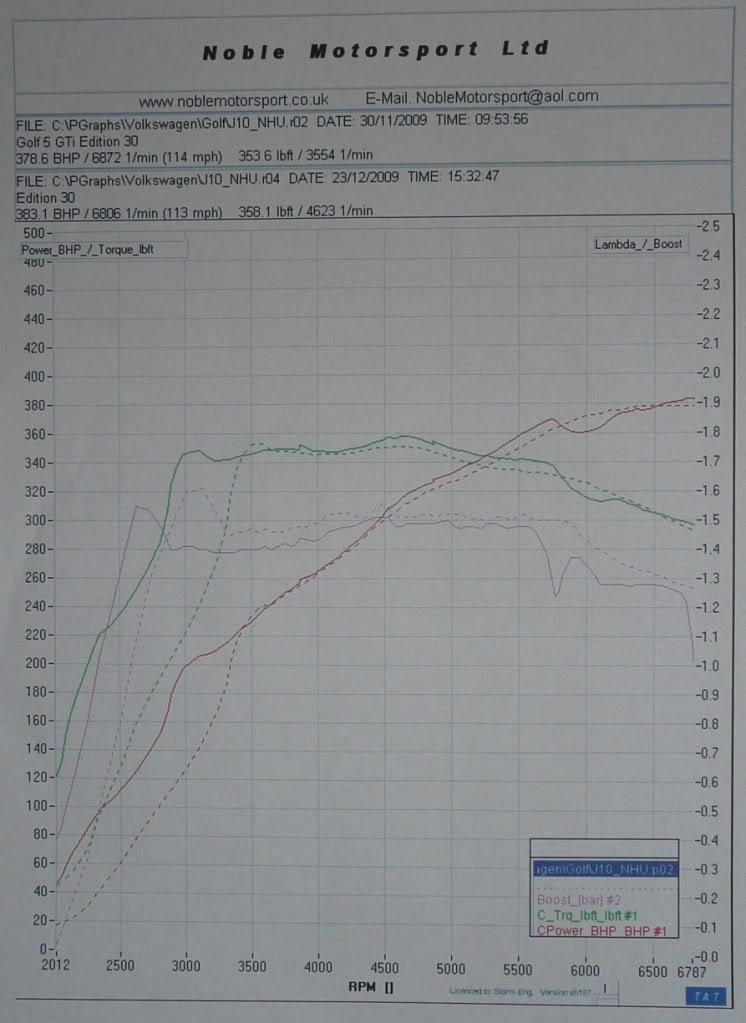

Type of Dyno/operator  :- Maha, Noble Motorsport



tuner/stage/settings :- Custom Code Stage 2+

Modifications :-Milltek full TBE, Evoms intake, Autotech HPFP, Forge DV, Forge Twintercooler

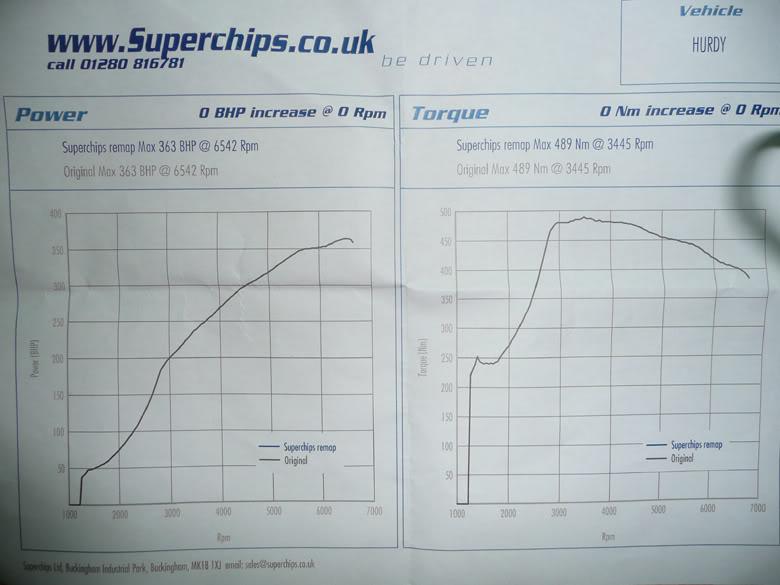

Type of Dyno/operator  :- Superchips HQ dyno.



tuner/stage/settings :-


Modifications :-

Type of Dyno/operator  :-



tuner/stage/settings :-

Modifications :-

Type of Dyno/operator  :-



tuner/stage/settings :-

Modifications :-

Type of Dyno/operator  :-




tuner/stage/settings :-

Modifications :-

Type of Dyno/operator  :-

Notes :- Fuelling issue at higher rpm, pulling back power

« Last Edit: November 23, 2010, 08:24:28 PM by Hurdy »
Golf R gone.

Offline micky 32

  • Always Involved
  • ****
  • Thank You
  • -Given: 5
  • -Receive: 3
  • Posts: 213
    • Email
Re: The ultimate Dyno Graph thread
« Reply #16 on: August 01, 2010, 02:13:18 PM »
Here's mine, a Octavia 2.0 T vRS with a KO4 stuck on it with Revo 3 and B7 T4 F6 and on a tight dyno. Others gave 350-370 which i won't even bother with.

2008 Octavia vRS K04'd , Forge twintercooler, Evoms, Autotech uprated pump, full Milltek exhaust 324bhp on JKM's rollers ;-)

Offline theo

  • Always Involved
  • ****
  • Thank You
  • -Given: 4
  • -Receive: 8
  • Posts: 364
Re: The ultimate Dyno Graph thread
« Reply #17 on: August 04, 2010, 06:14:54 PM »
b]Car:[/b]  Golf GTI Edition 30 2.0 TFSI

tuner/stage/settings Revo stage 2+   Settings:b-7 t-3 f-5

Modifications  Twintake, VWR Exhaust, APR HPFP, Twintercooler

Type of Dyno/operator  Dyno dynamics/Jkm perfomance

miscellaneous details  ambient temp 26 degrees - I think this is now the highest KO4 Car that JKM have had.




Offline Sunglasses Ron

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 11
  • -Receive: 14
  • Posts: 2067
    • Email
Re: The ultimate Dyno Graph thread
« Reply #18 on: August 04, 2010, 08:47:30 PM »
b]Car:[/b]  Golf GTI Edition 30 2.0 TFSI

tuner/stage/settings Revo stage 2+   Settings:b-7 t-3 f-5

Modifications  Twintake, VWR Exhaust, APR HPFP, Twintercooler

Type of Dyno/operator  Dyno dynamics/Jkm perfomance

miscellaneous details  ambient temp 26 degrees - I think this is now the highest KO4 Car that JKM have had.





AND on T3  :confused: too.. Why so low mate? Nice figures though for JKM..

Offline robern2

  • Always Involved
  • ****
  • Thank You
  • -Given: 1
  • -Receive: 12
  • Posts: 483
    • Email
Re: The ultimate Dyno Graph thread
« Reply #19 on: August 04, 2010, 08:59:09 PM »
And fuelling 5, seems a tad rich ?

Offline Sunglasses Ron

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 11
  • -Receive: 14
  • Posts: 2067
    • Email
Re: The ultimate Dyno Graph thread
« Reply #20 on: August 04, 2010, 09:31:41 PM »
Will add mine to the mix..

Car:-
Edition 30

Mods:-
Revo Stage 2+
Milltek TBE  / Sports cat
Hybrid Dbilas
Autotech HPFP

Settings:-
B8 T5 F6


Offline Top Cat

  • Top cat
  • Just look at my post count
  • ******
  • Thank You
  • -Given: 171
  • -Receive: 335
  • Posts: 8196
  • Almost Jacamo
Re: The ultimate Dyno Graph thread
« Reply #21 on: August 08, 2010, 09:37:04 PM »
There is a mistake there Ron, it says PD tuning on the graph. It should say Superchips.  :laugh:

Only kiddin.  :wink:

Offline Hedge

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 485
  • -Receive: 304
  • Posts: 6621
Re: The ultimate Dyno Graph thread
« Reply #22 on: August 08, 2010, 09:59:19 PM »


R32 Standard software, EVOMS intake, Milltek catback and V-Power. :pomppomp:

B N/A
T N/A
F N/A
 :signLOL:

Offline Sunglasses Ron

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 11
  • -Receive: 14
  • Posts: 2067
    • Email
Re: The ultimate Dyno Graph thread
« Reply #23 on: August 09, 2010, 11:51:38 AM »


R32 Standard software, EVOMS intake, Milltek catback and V-Power. :pomppomp:

B N/A
T N/A
F N/A
 :signLOL:

You sure they've not been drawn with a ruler Hedge?  :surprised: :signLOL:

Offline Hedge

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 485
  • -Receive: 304
  • Posts: 6621
Re: The ultimate Dyno Graph thread
« Reply #24 on: August 09, 2010, 12:55:40 PM »
You sure they've not been drawn with a ruler Hedge?  :surprised: :signLOL:

Nope.  :innocent:

Offline Hurdy

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 52
  • -Receive: 136
  • Posts: 7683
Re: The ultimate Dyno Graph thread
« Reply #25 on: August 09, 2010, 07:29:09 PM »

Here is my latest dyno.

Edition 30 DSG

The two plots are without and with nitrous injection on 100bhp jets.

The car is on REVO stage 2+ B8T6F6
The DSG is using stage 2 REVO map.

Autotech HPFP
Forge Twintercooler
EVOMS intake
Milltek TBE
Decat
RS4 valve
Forge DV
Forge K04 actuator
Neuspeed discharge pipe
BSH PCV fix

Notes:-
The car was strapped down to a jig which effectively locks the car tightly down and is more severe than a normal strapdown for a dyno - operator said that this effectively lowers the readings from the dyno by approx 3%, so for all those who don't want to get out the calculator......

339.8bhp = 350bhp..........381lbft = 392lbft
438.7bhp = 450bhp..........510lbft = 525lbft

Golf R gone.

Offline Bogwoppit

  • Always Involved
  • ****
  • Thank You
  • -Given: 5
  • -Receive: 7
  • Posts: 77
Re: The ultimate Dyno Graph thread
« Reply #26 on: August 25, 2010, 10:14:23 PM »
Car:  2006 Skoda Octavia vRS TFSI (BWA engine code)

tuner/stage/settings: Jabbasport remap

Modifications:

-SFS Intercooler hoses
-Rev D diverter valve
-BSH Catch can




miscellaneous details
« Last Edit: June 09, 2012, 01:34:05 PM by Bogwoppit »

Offline Robert74

  • Always Involved
  • ****
  • Thank You
  • -Given: 2
  • -Receive: 5
  • Posts: 84
Re: The ultimate Dyno Graph thread
« Reply #27 on: September 07, 2010, 08:34:12 PM »
Car:  2006 VW Golf GTI 2.0 TFSI DSG

Tuner/stage/settings: AMD Essex Stage 1

Modifications:  Pipercross airfilter element, Carbonio, Shell Optimax 99

Type of Dyno/operator: DIMTECH DF41S/AMD Essex

miscellaneous details




This is my latest dyno run 13/06/2010.

Car:  2006 VW Golf GTI 2.0 TFSI DSG

Tuner/stage/settings: AMD Stage 2

Modifications:  Pipercross airfilter element, Carbonio, Milltek TBE non res. Shell Optimax 99.

Type of Dyno/operator: DIMTECH DF41S/AMD Essex

Miscellaneous details: AMD have had their Dyno recalibrated recently(4-6 weeks ago? I am not sure exactly) and they say it is now showing about 6-7 bhp less than it was hence the lower Stage 1 result on this graph compared to the previous graph. Car was suffering heat soak on the 2nd Stage 2 run I was told.




2006 GTI 5 door DSG

Offline damoegan

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 8
  • -Receive: 33
  • Posts: 1584
    • Email
Re: The ultimate Dyno Graph thread
« Reply #28 on: September 27, 2010, 11:36:19 AM »
Car: ED30

Tuner/stage/settings: P-Torque stage 1

Modifications: P-Torque stage 1 map, Forge DV

Type of Dyno/operator: Dastek (Ithink)/P-Torque

miscellaneous details: Standard with no other mods was 241.5bhp & 237.8lb/ft..

« Last Edit: September 27, 2010, 12:22:31 PM by damoegan »

Offline heavyd

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 29
  • -Receive: 29
  • Posts: 1372
    • Email
Re: The ultimate Dyno Graph thread
« Reply #29 on: October 10, 2010, 12:32:40 PM »

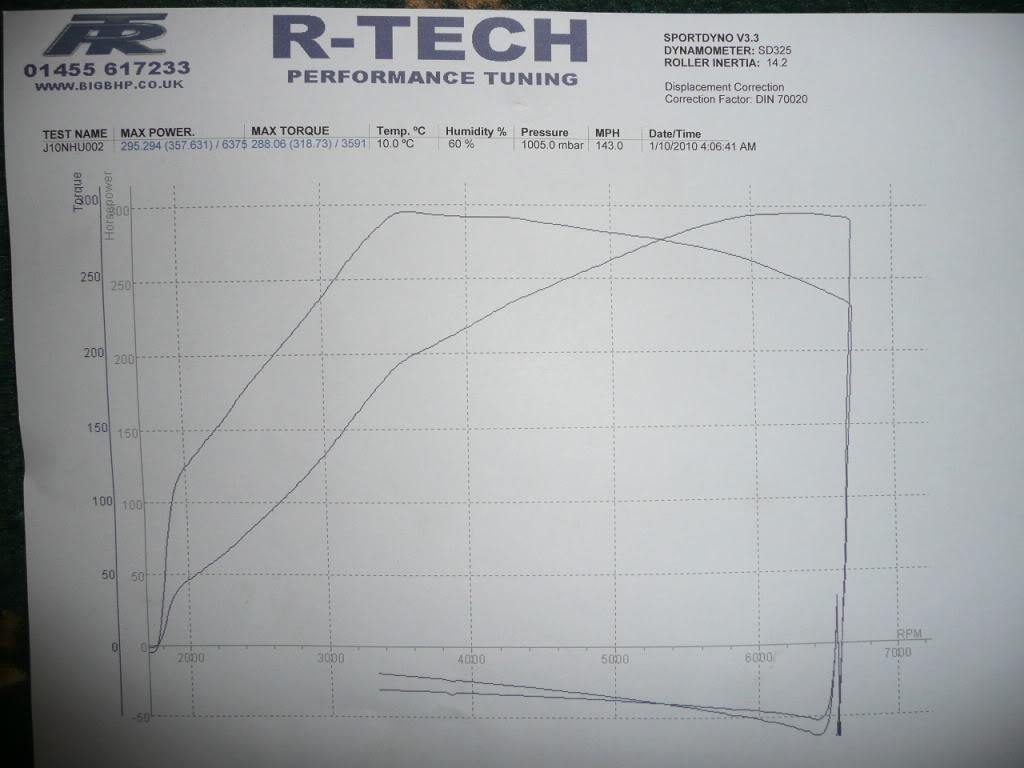

Golf Edition 30

Bluefin stage 1

Forge Twintake
