THS Replacement FR3 Engine Mounts TFSI : Review
« on: November 08, 2010, 12:53:07 PM »
Why

well Im sure most of you already know Ive been incrementally trying to decrease the amount of engine movement I feel my car has had from day 1.
So my cars manual Ed30 'timeline' of incremental actions Ive researched and subsequently tried has been :

0 miles :  car delivered with OE mounts
12,000 miles :  ECS Lower Mount Insert review
26,000 miles :  VWR 'Fast Road' Engine Mount + Powerflex Insert Bush - Review    (Note : this replaces the ECS insert with a complete new mount)
44,900 miles : THS side mounts fitted : this review      (Note : VWR Lower Mount  + Powerflex bush still remain)

I strongly recommend you take a look at the VWR Lower mount review above as it also outlines lots of general detail about the TFSI engine mounts Im not going to repeat here. (as well as links to RedRobins other engine mount reviews)

For a long time now I have endured  a broken oil cap / engine cover due to excessive movement that the dealer refuses to agree is a problem! (Note : I am now out of warranty)
Each time I have made changes the situation has improved to a varying degree, but over time either the new modification has 'softened' and/or the other mounts have continued to deteriorate.
This means unless you do a replacement of all items at once, theres a knock on effect.
I definitely felt that fitting the lower VWR mount hastened the demise of the side mounts (or maybe its just the way the OE mounts age past a certain amount of 'flexibility')

So I got to a point where I could face it no longer, my daughter would have to have a few less toys so that daddy can buy some engine mounts (lol).
The horrendous wheel hop and gradually returned and was painful, so much so I rarely 'pushed on'. As well as that deactivating the cruise control resulted in a jolt as the mounts rocked back and forth, very annoying. I have spent

best part of 6 months driving around the inadequacies of my engine mounts.

Having researched all the choices (see below) , and SteveP kindly setting up a very well timed
THS Engine Mount Group Buy, I jumped at the THS side mounts
(remember I already have a VWR lower mount which is the same as the THS lower version to all extents).

Why THS ?
I believe this represents a good halfway house between OE mounts and fully reworked mountings (BSH/VWR etc)
My previous experience with VWR lower mount showed me just how much a small difference can alter the NVH within the car, combined with  stokeballons review on BSH mounts
, and the fact he removed them, prudence was required and I knew some compliance would still be required in the mounting system.
I like the concept of taking the OE design and improving it as well. (Although longer term this may also mean the mounts 'age' just like OE, but VWR/BSH mounts may not)
And lastly the price point is appealing, especially as theres a chance I dont like them!


Sourcing

from
THS Performance
Quote
"2005-Present (MK5/6 Platform VAG cars)
THS Performance have developed a new engine mounting system for the 1.8T FSI and 2.0T FSI MK5 and MK6 type application.
The outer casing of the mounting system maintains stock appearance, whilst the internal rubber has been carefully re-engineered by means of shape and stiffness to reduce engine/drive train movement. The rubber is 30% stiffer than standard but becasue of the re-engineered shape the engine movement is reduced by over 50% without transmitting any serious engine vibration back into the vehicle unlike polyurethane mounts.
The extra control over the engine and drive train makes for a much more precise power transmission to the road both on 2wd and 4wd applications.
Significantly reducing wheel hop on 2wd cars. Other benefits are reduced stress on the exhaust system."

cost was £160 (£200 normally) via the forums group buy.

Fitting

It looks scary but in reality its not that bad, as long as you take your time and have the right tools.
I was quoted by Awesome GTi Manchester around 1.5 to 2 hours labour (£82.50  to £110), but decided to attempt it myself.
SteveP quotes around an hour, it took me around 2.

(install guide copied from SteveP's notes)
Tools Needs: -
19 (maybe 18 mm lol), 13 & 10mm Sockets
16mm deep Socket
Couple of medium and long extension bars
T20 Torx Screwdriver
Jack and a wooden block to support the engine
Also found a magnetic pick up tool very helpful  :grin:

On the drivers side mount I removed the bolts/screws for the washer filler neck, charcoal cannister and expansion tank, then unbolted the side support bracket.
Then you can get at the mount, that's unbolted by removing the2 x 16mm bolts and 2 x 19mm bolts.

Pics of the driver side mount: -







This side done: -


For the passenger side mount, the battery and battery tray (3 x 13mm bolts) need to be removed, then unclip the wiring loom tray the rest on top of the mount.
Then unbolt the three 19mm bolts on the engine side of the mount and the 4 x 19mm.
Pics of the Passenger side: -



This side done



my comments
I reused my original bolts
Use a torque wrench! +1/4 turn is a lot.
keep bolts in removal position order by punching holes in boxes new mounts come in to store bolts
fit bolts to chassis side first THEN engine side, if it feels wrong dont force or risk a cross thread!
use a jack to support the engine (THIS IS A MUST), once you see how much it all moves with a mount removed youll wonder why the OE mounts arent twice the size they are.
If you have a map e.g. REVO  theres a chance the settings may get lost so have an SPS switch handy

other data
comments as fitted by Gaz
original mounts query thread by me

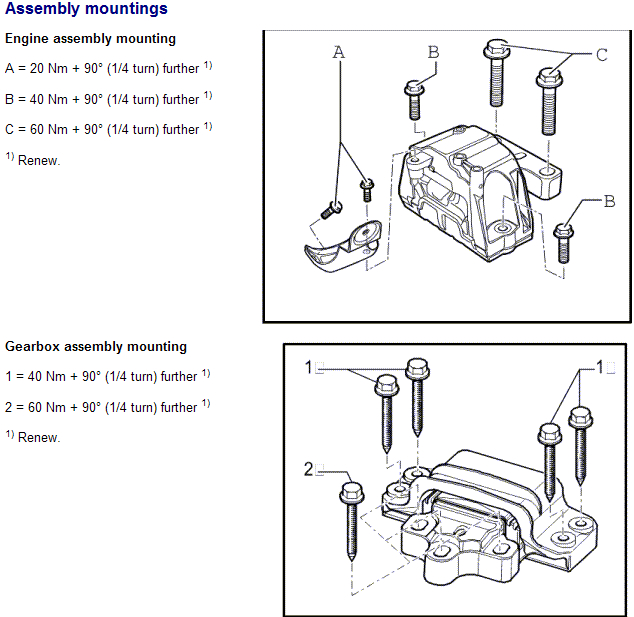

torque specs





Bolt numbers and approximate costs should you wish to buy replacements

Engine Mount =
2 x N 019 502 13 - M8x25 (£0.51 each)
1 x N 905 969 06  - M10x55x32 (£4.11 each)
2 x N 105 524 02 - M12x1,5x70 (£2.35 each)
1 x N 910 296 02 - AM10x55/M6x12 (£3.94 each)

Gearbox Mount =
4 x N 905 969 06 - M10x55x32 (£4.11 each)
2 x N 105 524 02 - M12x1,5x70 (£2.35 each)

Lower Mount =
1 x N 911 671 01 - M10x75 (£1.65 each)
1 x N 910 661 01 - M10x35 (£1.65 each)

All prices are inc VAT and as a guide only (part list from ETKA for a 2008 Golf).

TODO : describe old mounts
TODO : add pic of old mounts

Alternative engine mounts to consider

Theres a considerable amount of choice out there for engine mount replacements, its just a question of how far you want to go, and how much NVH you are willing to put up with.

BSH mounts
(non OE appearance but stealth like , poly  bushing , inc new bolts)  78a durometer bushings
BSH speedshop
stokeballons review
vortex review
golfmkv review

VWR mounts
(non OE appearance, poly bushing)
VWR Racing
RR's lower mount review
my review of lower mount
RR's full set review

VF Engineering
(look the same as BSH version)
VF Engineering

BlackForestIndustries (US)
BlackForestIndustries
supply inserts (passengers side) , preassembled  or full items (drivers side) , 3 levels of hardness from 1 to 3
"Stage1 65a poly inserts vs. the stock (45a)inserts are 50% stiffer than stack. Will increase some vibration in cabin - especially during certain rpm ranges"
they have a useful diagram of the collapsed OE mount .....


Use OE new mounts and fill as per TeutonicTamer
TT's thread on modded engine mounts
My only concern is that its still 2 different types of material that may seperate and age differently. Not entirely convinced it will last for very long.

I remember jonnyc also filled some engine mounts for his S3


Specific noise data

Im trying to compare to how I previously reported when the VWR lower was fitted. Now bear in mind that this got quieter over time as both it and other mounts have softened further

idle  or idle+aircon
in a previous review I complained that a vibration was existent with air con on once the VWR lower had been fitted, ironically with the 2 side mounts fitted AND new REVO software this is now gone! something has meant the harmonics have changed out of this range. At idle my car is now quieter than it was before.

clutch biting point
I always have moaned that the DMFlywheel and clutch on the GTI is pants. feel is non existent. Immediately after fitting I felt the noise at the biting point was worse, but almost straight away this went, now the

noise at takeup has gone as feels much less harsh (ironic when you consider the NVH increases in all other phases, I would theorise the mounts 'settled' post installation, or maybe Im just deaf from the Grr...)

acceleration mild : feels coarse/harsh, +50% NVH increase. level increases as revs rise

deceleration :  feels coarse/harsh, +50% NVH increase. level increases as revs rise

acceleration full :  wtf! way more noise, easily +100% or more, when I spoke to Gaz I mentioned its more like an old mk2escort on twin 45DCOE carbs at full chat!
its intake/gearbox + just about any noise you can think of lol. Sounds like I have an intake fitted when I dont.not for the faint hearted or the paranoid.

You can modulate some of the sound with load applied but some still remains even on a flat throttle.
however cruising at 70-80mph is almost identical to before. Definitely lower speeds you notice the noises more.

now that sounds bad but it isnt really. I have now completed over 200 miles and already the noises are improving.
But in reality the car is no longer the paragon of smoothness you hoped for, but for me the benefits FAR outweigh the disadvantages of fitting.
I find it hard to imagine what the full BSH/VWR mounts sound like, if this is the halfway house.

Plus Points

OE look. OE design but better.
Fits just like OE
Warranty friendly
Its an easy to fit modification that looks daunting but isnt (but could be if you get it wrong)
Depending on how they last, I would say good value.
Engine no longer moves at all. Engine Cover/Oil Filler cap are now safe (as are aftermarket intakes if you have one installed re: forge snapping bracket)
Aural improvement if thats your thing. Grrrrr TM according to RedRobin
adds some intake like type noise even with stock engine cover
wheelhop is gone (finally)
clutch bitepoint noise has improved significantly.
THS Performance support seems to so far have been top notch with questions answered quickly and even torque settings supplied.

Minus Points

NVH. not really in keeping with the GTI fast but refined ethos. coming from very worn OE mounts they are a vast difference.
Long term resilience as yet unproven.
May impact if you planned to sell the car, prospective buyer will just compare to OE sounds and reckon your gearbox/engine is fkd
The lower mount (which I didnt fit , as I have a VWR one) is much less of a DIY proposition.


Summary
Until someone creates adaptive engine mounts that can be retrofitted to mk5/mk6 golfs the whole area is a compromise of
reduced engine movement VS Noise/Vibration/Harshness levels.
These can be effected by design and nature of the components used to build the engine mounts (contact surface area ,durometer of rubber/poly used etc)

The OE mount does a fantastic job at keeping noise levels low but allows significant engine movement even when new (and gets % wise far worse as they wear more).
I guess if you could get them cheap enough, replacing the OE mounts with new OE mounts every 5-10k miles could be an option but thats not for me, besides even when new they arent that great.

So if like me you can sacrifice some comfort for a fully restrained engine you will have to fit aftermarket mounts using one of the options I listed above.

My advice after doing this incrementally (assuming you place engine restraint over noise levels) would be to

IDEAL SCENARIO : fit all 3 mounts (2 x side + lower) at the same time so that the loads are spread evenly across all stress points.
Doing it incrementally I believe, has greatly shortened the life of my OE side mounts as well as my newer lower mount. all at once or nothing.

COMPROMISE SCENARIO 1 :
less effective (but more cost efficient) maybe to consider 2 x side with the dogbone insert, that way you can fit it all at home without the need for a press.
(I do however feel this is suboptimal and may not last as long as in combination with a 'good' lower mount), I havent tried it but the noise levels maybe reduced too.

COMPROMISE SCENARIO 2 :
fit lower VWR/THS mount and 2 new OE mounts, and replace the OE mounts frequently. that way noise is significantly reduced, OE mounts arent left to age to any great extent.

Its a double edged sword as you want them to hold the engine tight but at the same time soften to reduce noise levels.

At this stage 200 miles since fitting, I am very happy with the THS side mounts and Im quite happy to give them 1000 miles or more to bed in.  :happy2:
Ill be sure to update this review as the miles progress........


thanks to everyone for their help and input on all aspects of providing data etc of this review.  :happy2:

Black ED30 3dr manual : No 1369
REVO Stg1 | WALK | DEFI | THS side +VWR Road Lower+PF | S3 calipers/340mmXDDiscs/DS2500 | B12 Sportline
BLOG | BUILD

Offline wigit

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 129
  • -Receive: 42
  • Posts: 1825
    • Email
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #1 on: November 08, 2010, 04:33:00 PM »
that is a cracking in depth write up and hats off to you for taing the time fella  :happy2:

Offline Poppa Dom

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 7
  • -Receive: 40
  • Posts: 1553
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #2 on: November 08, 2010, 06:03:48 PM »
+1  :happy2: A superb review, I have put 1500 miles on mine in the past 2 weeks and I love the full set of mounts, not finding the noise an issue, in fact I like a little more rawness. Thanks for taking the time on this review, if anyone is considering these they get my vote! Agree that there is little change in sound, cabin noise at motorway cruising speeds

Offline RedRobin

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 376
  • -Receive: 433
  • Posts: 16612
  • BIALI Motorsport's Chief Horn Blower
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #3 on: November 08, 2010, 06:28:36 PM »
Wow! An incredibly thorough and very detailed and informative review.

You wrote: "the car is no longer the paragon of smoothness you hoped for, but for me the benefits FAR outweigh the disadvantages"

^^^^ That's it in a nutshell. Car manufacturers have to make their products 'smooth' for the bigger market. Hardcore enthusiasts who prefer dependable driver feedback and sounds to monitor and enjoy, are a minority.

Good point you make about it being preferable to do all three mounts so that wear and stresses are likely to be more even.


On facebook: https://www.facebook.com/robin.procter.50

Throbbin' Red Mk5 GTI DSG with too many mods to list - Have Fun but Safe Journeys!

Offline Top Cat

  • Top cat
  • Just look at my post count
  • ******
  • Thank You
  • -Given: 171
  • -Receive: 334
  • Posts: 8196
  • Almost Jacamo
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #4 on: November 08, 2010, 09:01:32 PM »
Not a bad review all things considered.  :indifferent:  :fighting2:


Incredible.  :congrats:  And not one mention of the word GRRrrr!.  You should get yourself a job working for "Which".  :happy2:




Offline KRL

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 25
  • -Receive: 29
  • Posts: 619
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #5 on: November 08, 2010, 09:05:08 PM »
He did mention GRRRrrr once  :P

Offline Top Cat

  • Top cat
  • Just look at my post count
  • ******
  • Thank You
  • -Given: 171
  • -Receive: 334
  • Posts: 8196
  • Almost Jacamo
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #6 on: November 08, 2010, 09:22:56 PM »
He did mention GRRRrrr once  :P

Your right.  :ashamed:

I retract my comment on your review. I now feel it is pance.  :driver:

Offline john_o

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 124
  • -Receive: 97
  • Posts: 2847
  • oh the irony
    • My Car Blog
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #7 on: November 08, 2010, 10:27:08 PM »
thanks everyone, its a team effort  :happy2: not just my info in this review.

and TC , I couldnt mention mounts without using one of Robins trademark catchphrases  :laugh:
(which unsurprisingly describes the sound pretty well  :signLOL:)
Black ED30 3dr manual : No 1369
REVO Stg1 | WALK | DEFI | THS side +VWR Road Lower+PF | S3 calipers/340mmXDDiscs/DS2500 | B12 Sportline
BLOG | BUILD

Offline TT-Turbo

  • Always Involved
  • ****
  • Thank You
  • -Given: 9
  • -Receive: 18
  • Posts: 188
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #8 on: March 20, 2011, 12:38:10 AM »
Nice write up. I have been looking into the THS mounts compared to BSH and BFI. The THS mounts seems fairly un-spoken about so gives a valuable opinion.

Offline the bruce

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 322
  • -Receive: 99
  • Posts: 1591
    • my GTI
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #9 on: April 21, 2011, 11:47:10 PM »
 :happy2:


Great review !!!

 :congrats: :congrats: :congrats: :congrats: :congrats:
"You get what you pay for."

Offline fab5freddy

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 227
  • -Receive: 239
  • Posts: 1971
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #10 on: May 02, 2011, 08:57:34 AM »
Spot on John_o, all the info i was looking for. Thank you  :congrats:

Offline danishmkvgti

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 246
  • -Receive: 149
  • Posts: 3675
    • Email
  • My Ride: http://www.mk5golfgti.co.uk/forum/index.php?PHPSESSID=36b8kiuai3bsqmlpj19e0tcjq5&/topic,7823.0.html
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #11 on: May 02, 2011, 09:03:22 AM »
Fitment of the 2 upper mounts has helped with the judder i had with the Sachs uprated SMF clutch pack, Still trying to get used to the changed engine noise inside the car, keep thinking something is wrong  :laugh:
The extra noise is well within acceptable soundvlevels IMO off course  :happy2:

Over the top mod list ;o)

Offline Neilgti

  • Always Involved
  • ****
  • Thank You
  • -Given: 26
  • -Receive: 10
  • Posts: 350
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #12 on: June 23, 2011, 09:47:32 PM »
I fitted the fast road vwr engine mount 2 weeks ago, had it on 3 days and then removed it, the vibration was driving me crazy
I think it is a dsg thing because the manual versions dont seem to suffer this ?
it feels like the clutch is at biting point on tickover when your in gear (the only way to explain the vibration) no probs on the move and feels more responsive,
i have now fitted the standard rubber mount with the fast road poly insert to stiffen it up thinking that it wouldnt vibrate as much as the ally version vwr mount, but it feels just the same, will have to get use to it methinx
MK5 GTi
MK5 R32
MK6 Gti, all gone but not forgotten
Now loving the 7R

Offline JamesH

  • Always Involved
  • ****
  • Thank You
  • -Given: 17
  • -Receive: 2
  • Posts: 62
    • Email
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #13 on: July 07, 2011, 12:19:05 PM »
Just been thinking about the THS mounts and found this thread. REALLY useful guide and also review.

Thanks.  :happy2:

Offline Carrera2RS

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 5
  • -Receive: 6
  • Posts: 503
Re: THS Replacement FR3 Engine Mounts TFSI : Review
« Reply #14 on: July 08, 2011, 09:35:17 AM »
Seems they vary in how they perform.

My car, a  manual Pirelli has the botom THS mount and it is AWFUL..... I have given it 500+ miles and it is better but the dash shake, pulling away in a 100k mile taxi with a duff clucth vibration is still there. Fine on the move but frankly awfyul

I am tolerating until I can find a solution to wheel hop without the problems thei creates. To put this in context I let my friend drive the car and he was shocked how afwul the vibration was......
